The following gıidelines must be followed in order to ensure the maximum benefit from solar system;
• The most important part of the solar system is the photovoltaic panel! Therefore a Tier-1 class polycrystalline solar panel would be a good choice for long term solar energy harvesting.
• Check the azimuth angle of the PV installation area. Azimuth angle should to be zero to maximize the solar energy gained from the sun.
• The tilt angle must be checked and that should be set to local optimum tilt angle. That value is about 30 degree for Turkey and Europe.
• Installation and electrical works must be performed by expert teams.

Normalized productions: Nominal power 10.00 kWp

10 kW PV SYSTEM SIMULATION RESULTS
	GlobHor kWh/m²	T Amb                °C	Globinc kWh/m²	GlobEff kWh/m²	Earray             MWh	E_Grid MWh	EffArrR %	EffSysR %
January	71.6	9.50	114.6	108.1	1.042	1.020	13.89	13.60
February	87.6	9.70	122.0	115.1	1.097	1.074	13.74	13.45
March	154.7	12.10	194.5	183.8	1.726	1.691	13.55	13.28
April	183.9	15.40	199.8	188.1	1.732	1.696	13.25	12.97
May	230.0	19.80	227.0	213.8	1.921	1.881	12.93	12.66
June	245.1	24.20	229.4	215.9	1.896	1.856	12.62	12.35
July	238.7	27.20	229.0	215.6	1.865	1.826	12.44	12.18
August	216.1	27.50	226.3	213.5	1.845	1.807	12.45	12.19
September	174.3	23.60	211.1	199.7	1.760	1.724	12.73	12.48
October	133.3	18.70	187.7	177.9	1.613	1.581	13.12	12.86
November	84.6	14.80	133.3	125.9	1.181	1.158	13.54	13.27
December	63.2	10.80	106.6	100.6	0.966	0.946	13.84	13.55
YEAR	1883.2	17.82	2181.3	2058.1	18.645	18.260	13.06	12.79

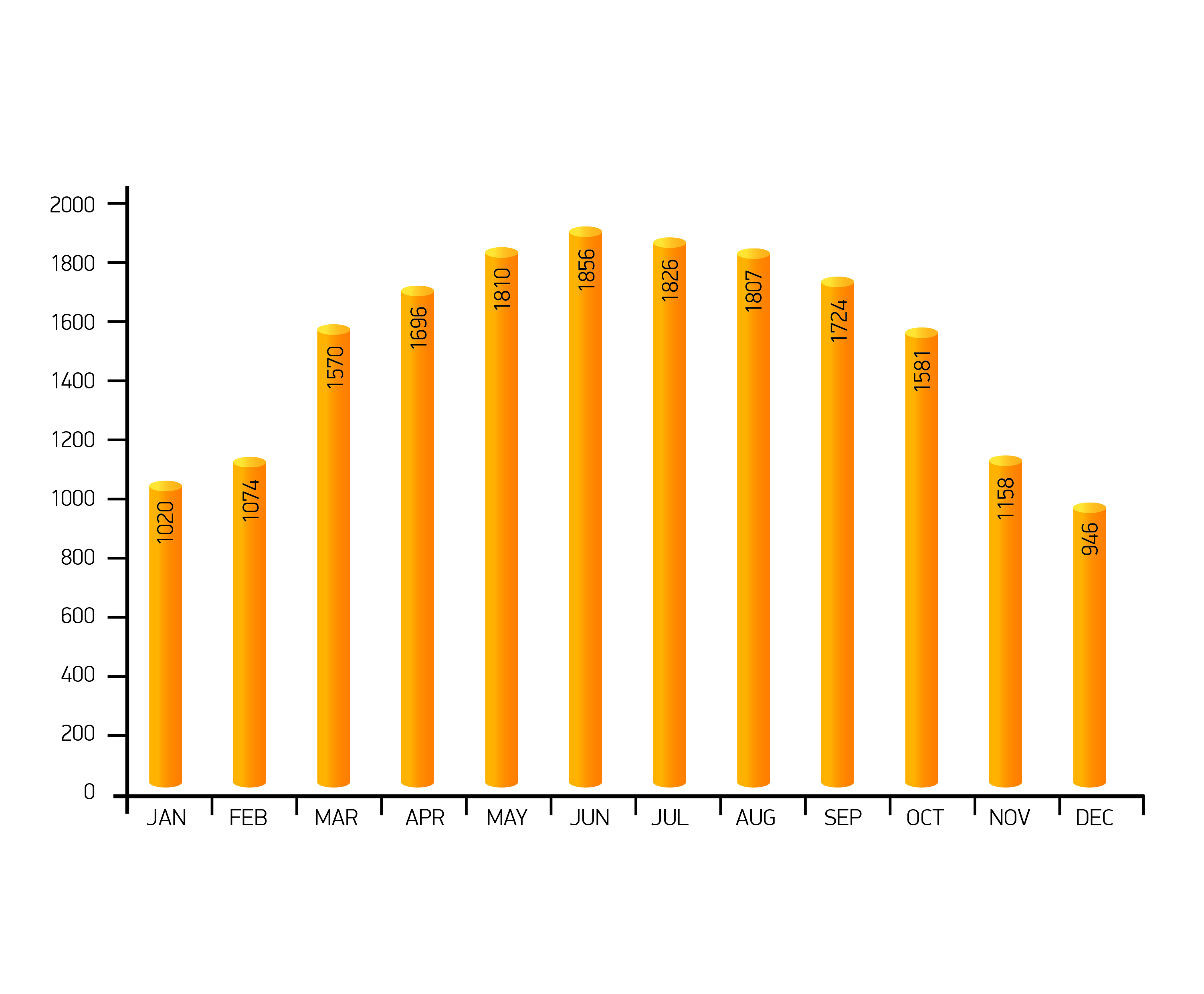

	The energy produced by months
	Effective radiation by months

The Reality



Hybrid UPS

---

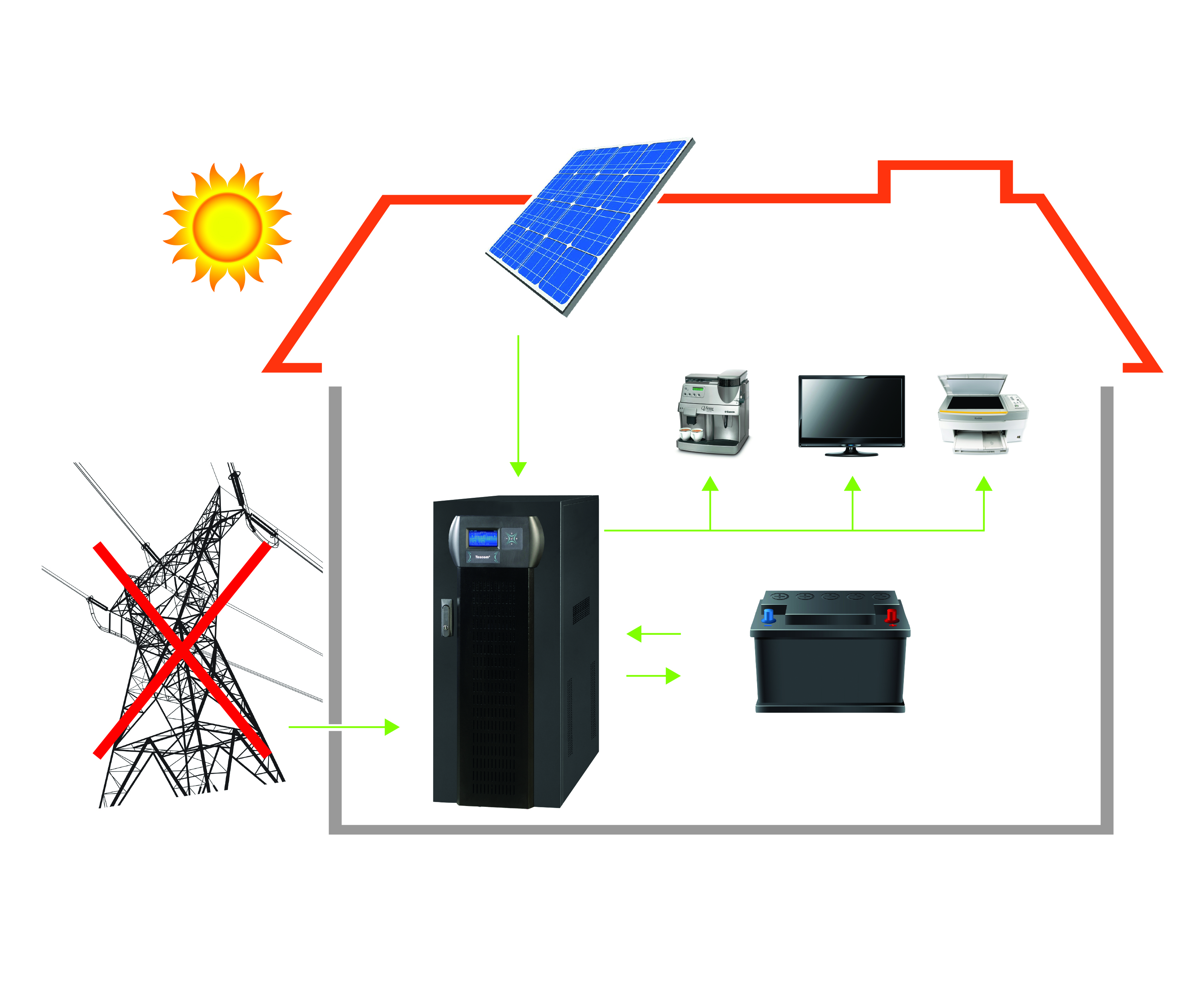

Grid Unavailable In case of power failure the requested energy is coming from the solar panels and/or batteries. The backup time vary with the connected load and the power of panels/batteries.The backup time vary with the connected load and the power of panels/batteries. Without solar energy, the load is directly supplied by the batteries.

---

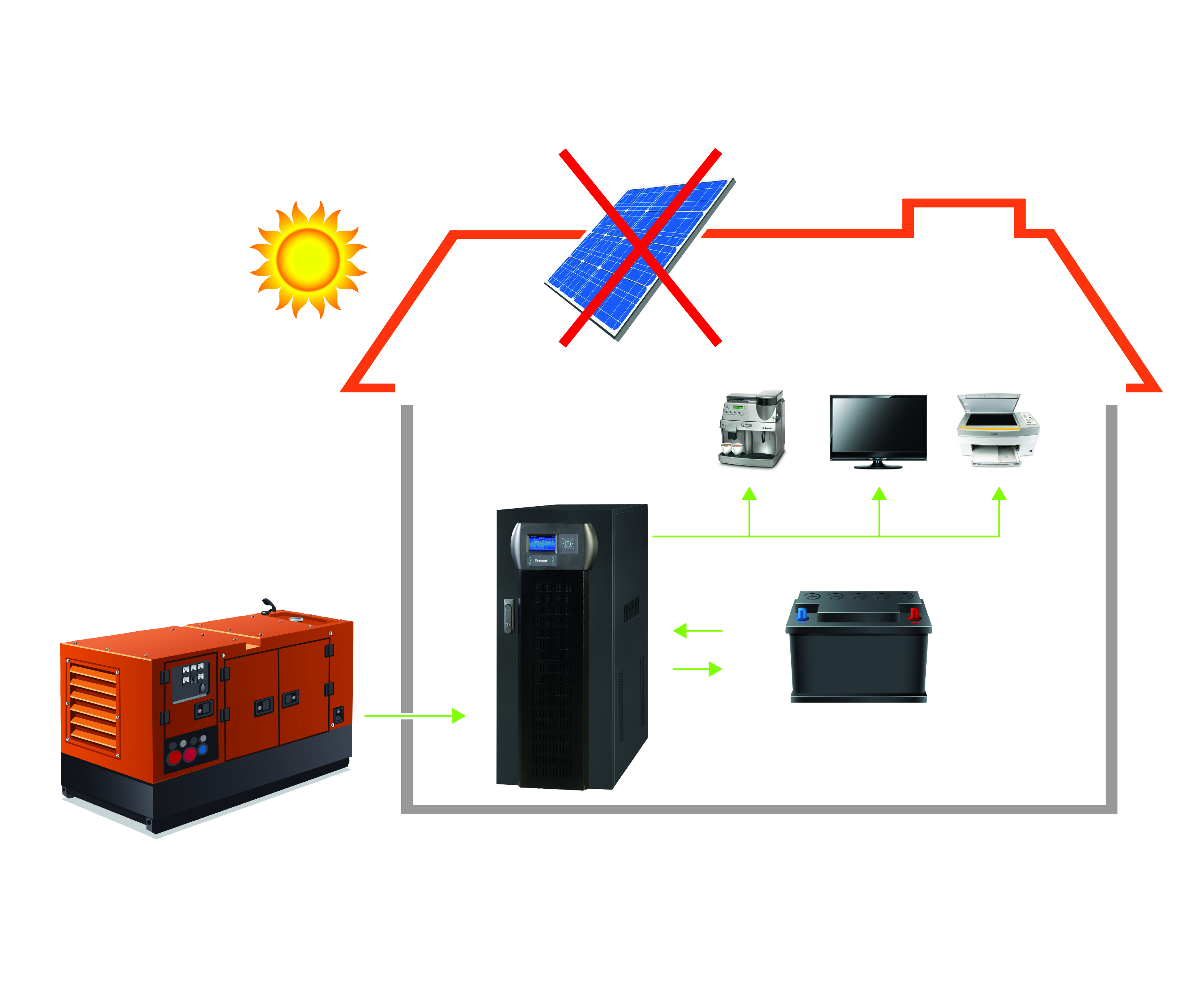

Unavailability of grid, solar and battery group Hybrid UPS system automatically starts the emergency generator when the solar energy, batteries and grid are unavailable.

THE POSSIBILITIES

Traditional UPS (DS300 Series)

The connected load is powerded by our DS300 online double conversion UPS ith the latest tecnology. The energy comes from the grid or from the batteries in case of a power blackout.

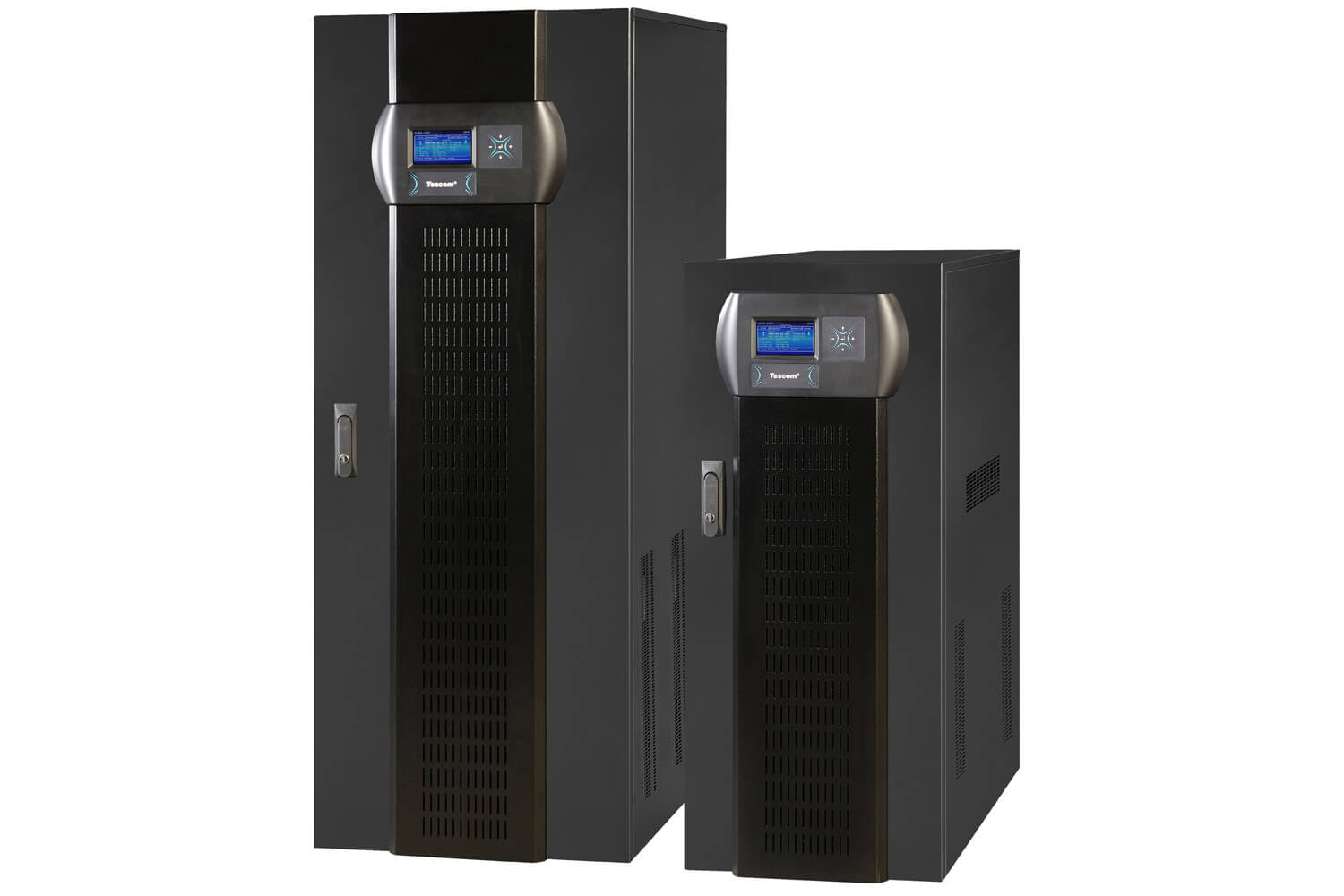

HYBRID UPS (DS300HB Series)

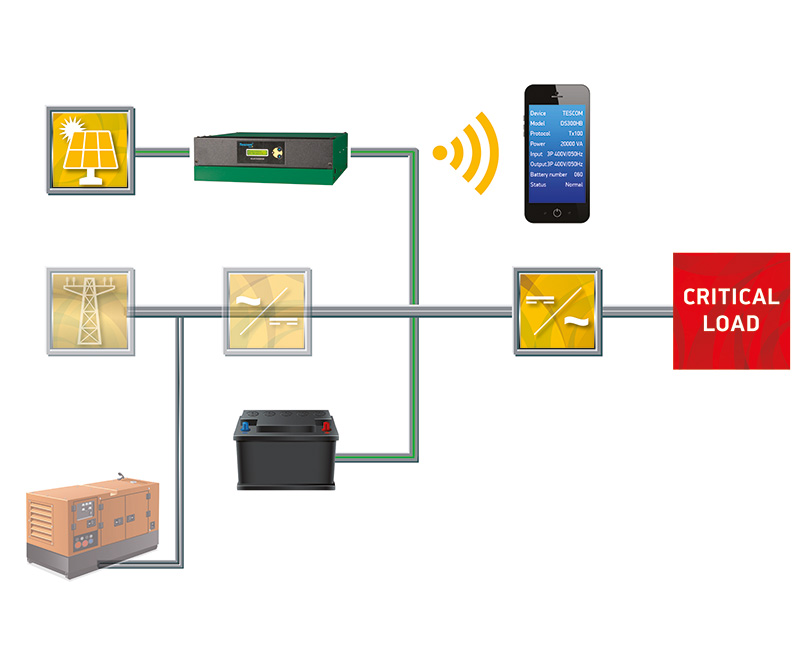

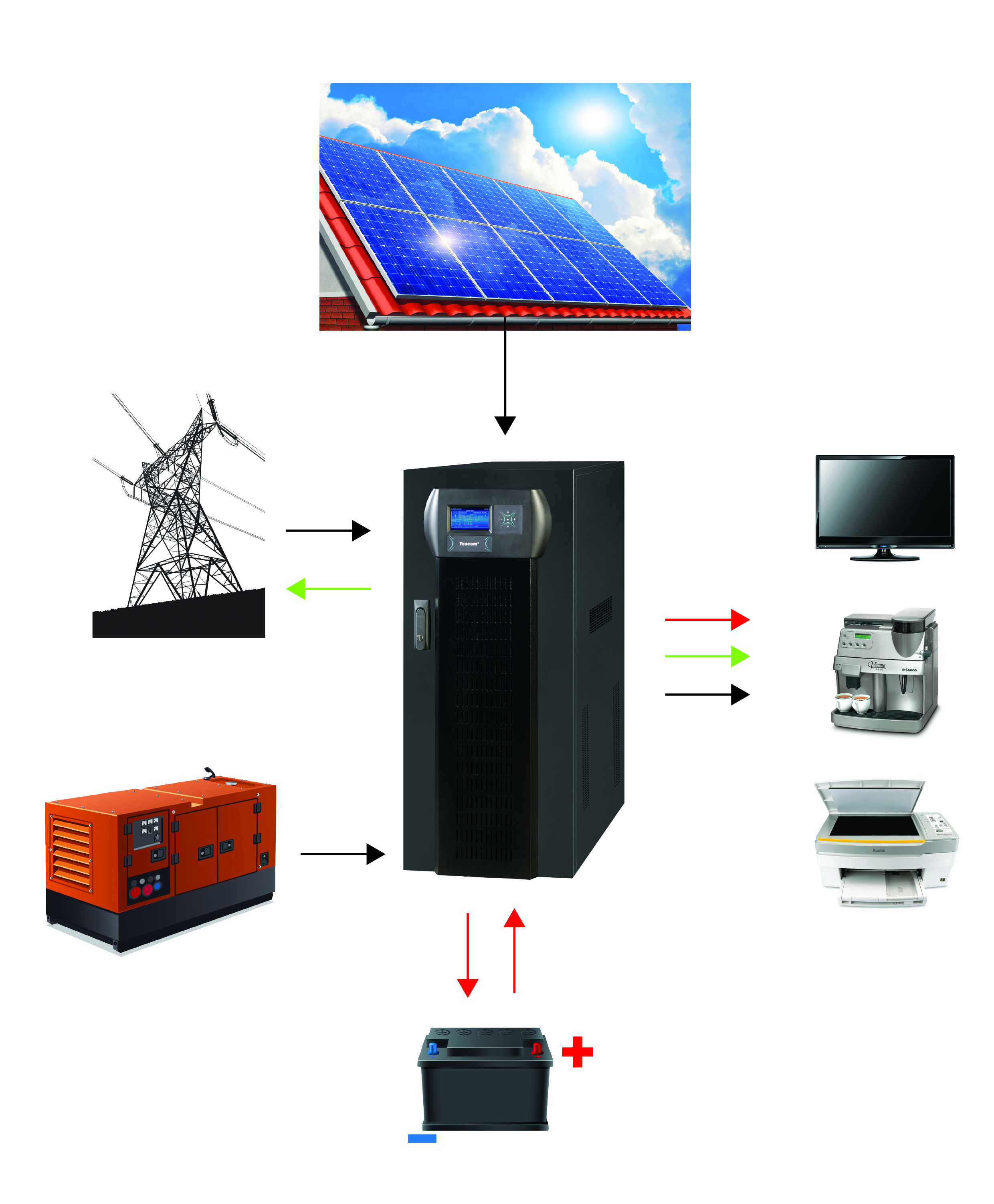

Hybrid ups senses the avability of solar power, grid power and the battery power for supping the connected loads using tne most economical and ecological combination of these energy sources. TGc series solar converter is connected to the DC bus of the Hybrid UPS and solar group is set as the primary energy source.
Diesel generator stars automatically in case of solar energy, grid and battery group unavailability. This feature will greatly simplify your life where there is no electrical network.
In addition to the hybrid operation, intelligent controller provides you “real time monitoring”. That function is fully designed by Tescom and avilable for smart phones. All you need is an internet connection.
