100 UPS SERIES

1/1 Uninterruptible Power Supplies

5kVA - 7kVA - 10kVA - 15kVA

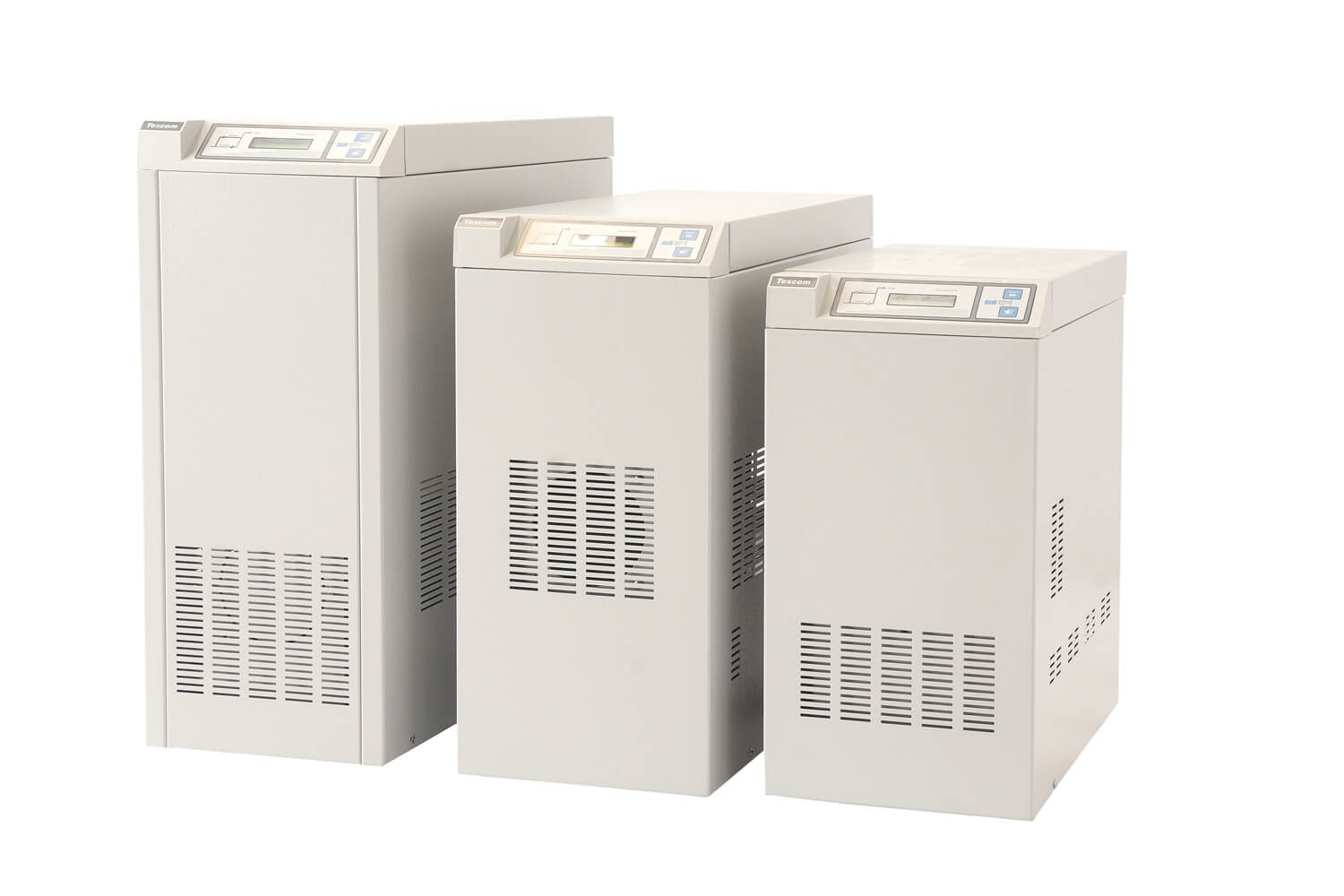

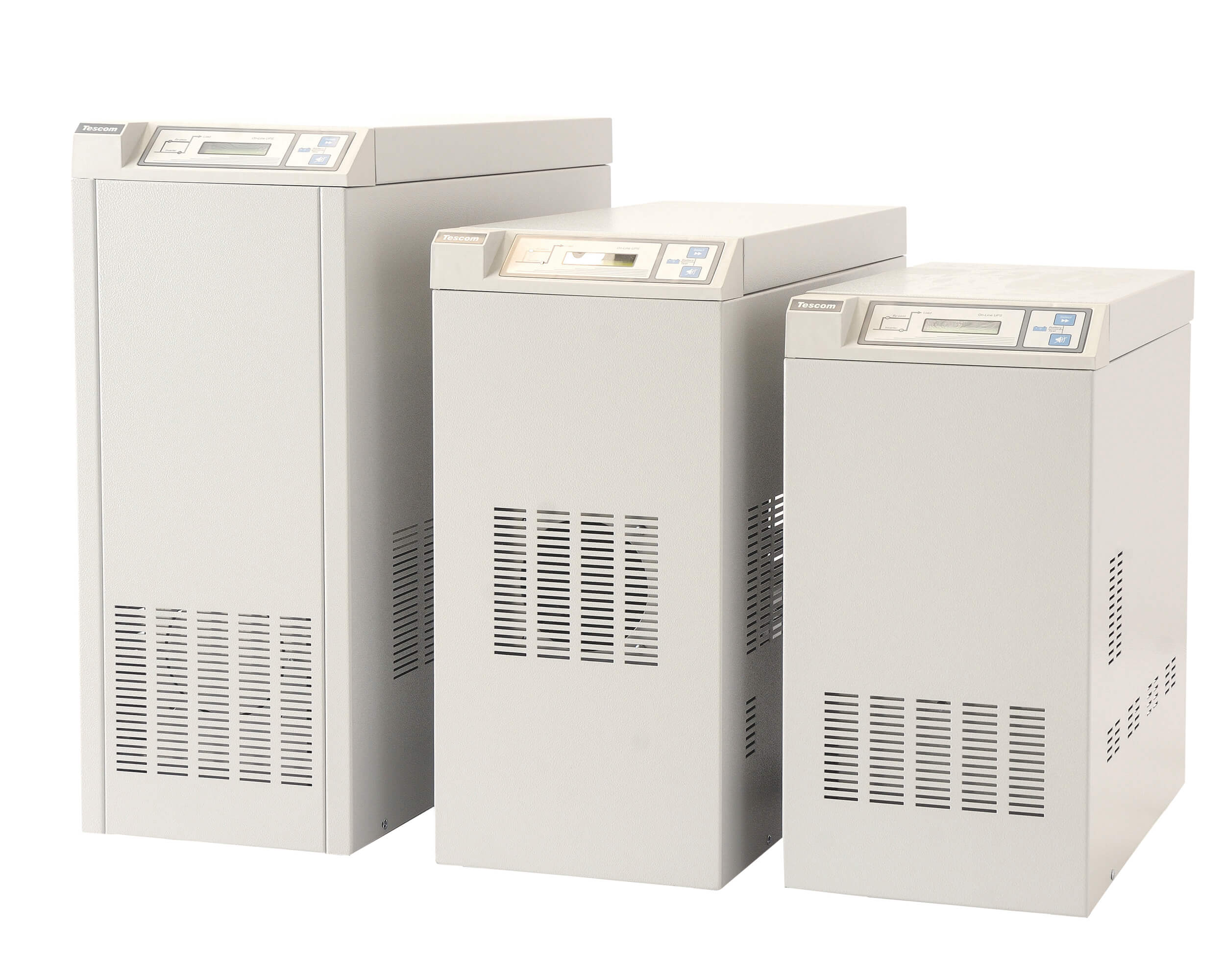

TESCOM 100 Series 1/1Ph Uninterruptible Power Supplies

Tescom  100 series are, True online, Double conversion UPS Systems, manufactured with the state of the art, PWM and IGBT technology, producing microprocessor controlled pure sinewave output to critical loads..


• Output isolation transformer
• Up to 91% efficiency
• Static by-pass
• LCD front panel
• 64 events memory
• RS232 and relay contacts
• Custom input and output voltage ranges
• SNMP compatible communication
• T-MON remote monitoring software
• Parallel operation
• 2 years warranty
• 10 years spare parts support
• Manufactured according to EC Directive; EN62040

MODEL
105XA
107XA
110
115
Power (kVA)
5
7
10
15
INPUT
Voltage
220/230 VAC P + N + G ± 15%
By-pass voltage
220/230 VAC P + N  ± 10%
Frequency
50Hz / 60Hz ± 5%
OUTPUT
Power (kW)
3,25
4,55
7
10,5
Power factor
0.65
0.7
Voltage
220/230 VAC P + N  ± 1%
Frequency
50Hz (60Hz on request)
Frequency tolerance

Line synchronized: ± 2% , free running: ± 0,2%
Efficiency (at 100% load)
up to 90%
up to 91%
Crest factor

3:1
Overload protection
100%-125% load: 10 min., 125%-150% load: 1 min., > 150% load: by pass
Short circuit protection
Electronic short circuit protection
Voltage THD
< 3%
BATTERIES
Type
Sealed Lead Acid - Maintenance Free
Number of batteries
16
18
20
Float charging voltage
216 VDC
243 VDC
270 VDC
End of discharge voltage
160 VDC
180 VDC
200 VDC
Battery cabinet
Internal
External
Battery ambient temperature
25°C
Battery protection
Automatic circuit breaker
Battery test
Optional
GENERAL
Standards
EN 62040-1,EN62040-2
Serial communication
Dry contacts & RS232
Software
T-Mon UPS Management Software (3 clients, +1 server management std.)
Temperature range
0°C - 40°C
Ventilation
Forced air cooling
Relative humidity
< 90% (non-condensing)
Protection degree
IP20
Altitude
< 2000m.
Acoustic noise
< 45 dBA
Weight without batteries (kg)
60
75
82
107
Dimensions (mm) HxWxD
595x265x600
645x265x670
720x265x740
775x300x800
OPTIONS
Different input / output voltage
Please ask
Input transformer
Galvanic isolation transformer at the input (in external cabinet)
6kVA & 7kVA
Previous, output PF:0.7 versions (4200W - 4900W) available on request
MBS
Maintenance Bypass Switch for complete isolation
Adaptors
SNMP, MODBUS, Remote Mon. Panel, RS485
Parallel operation
N+1 (up to 4 units)
