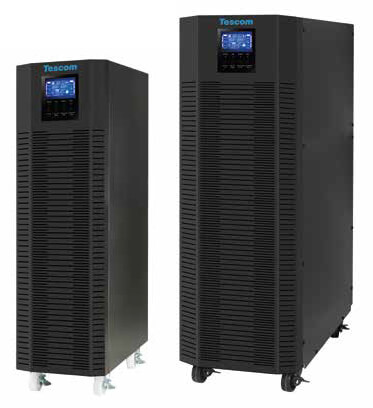

TEOS 300 UPS SERIES

3/3 Uninterruptible Power Supplies

10kVA - 20kVA



• True double-conversion
• DSP technology guarantees high performance
• Output power factor 0.9
• Active power factor correction in all phases
• 50Hz/60Hz frequency converter mode
• ECO mode operation for energy saving
• Customized dual-mains inputs
• Emergency power off function (EPO)
• Generator compatible
• SNMP+USB+RS-232 multiple communications
• 3-stage extendable charging design for optimized battery performance
• Adjustable battery numbers
• Maintenance bypass available
• Optional N+X parallel redundancy
• Optional isolation transf ormer offers full isolation and complete common mode noise rejection

MODEL
TEOS 310
TEOS 315
TEOS 320
Rated Power
10000VA / 9000W
15000VA / 13500W
20000VA / 18000W
Nominal Voltage
3x400VAC (3Ph+N)
Frequency range
46~54 Hz or 56~64Hz
OUTPUT
AC Voltage Regulation
±1% (batt. mode)
Frequency range
46~54Hz or 56~64Hz (synchronized range)
Frequency range
50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz (batt. mode)
Harmonic distortion
≤ 2 % THD (Linear Load) ≤ 5 % THD (Non-linear Load)
Current Crest Ratio
3:1(max)
Waveform (Batt. mode)
Pure Sinewave
EFFICIENCY
AC mode
90,5%
91,5%
Eco mode
96%
Battery mode
87%
88%
BATTERY
Battery type
12V / 9AH
Numbers
16
16 pcs x 2 strings
Typical recharge time
9 hours recover to 90% capacity
DISPLAY
LCD
UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions
COMMUNICATION
Optional SNMP
Power management from SNMP manager and web browser
PHYSICS CHARACTERISTIC
Dimensions (mm) HxWxD
826x250x592
Net weight (kg)
96
146
ENVIRONMENT
Humidity
0-95% RH @ 0-40°C (non-condensing)
Acoustic noise
Less than 60dBA @ 1 Meter
Less than 65dBA @ 1 Meter
