DS|POWER 110 UPS SERIES

3/3 Uninterruptible Power Supplies

5kVA - 10kVA - 15kVA - 20kVA - 30kVA - 40kVA - 50kVA - 60kVA - 80kVA

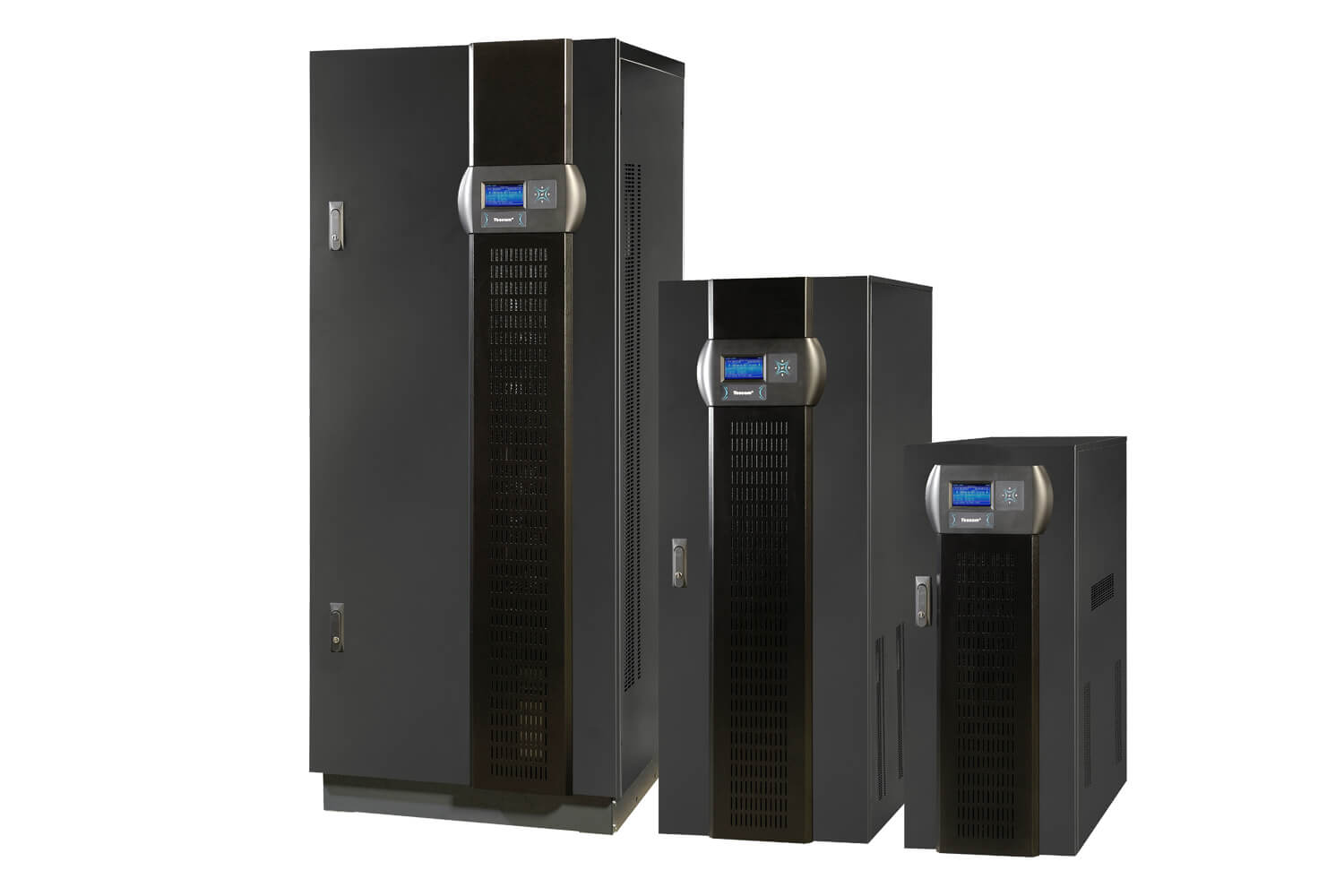

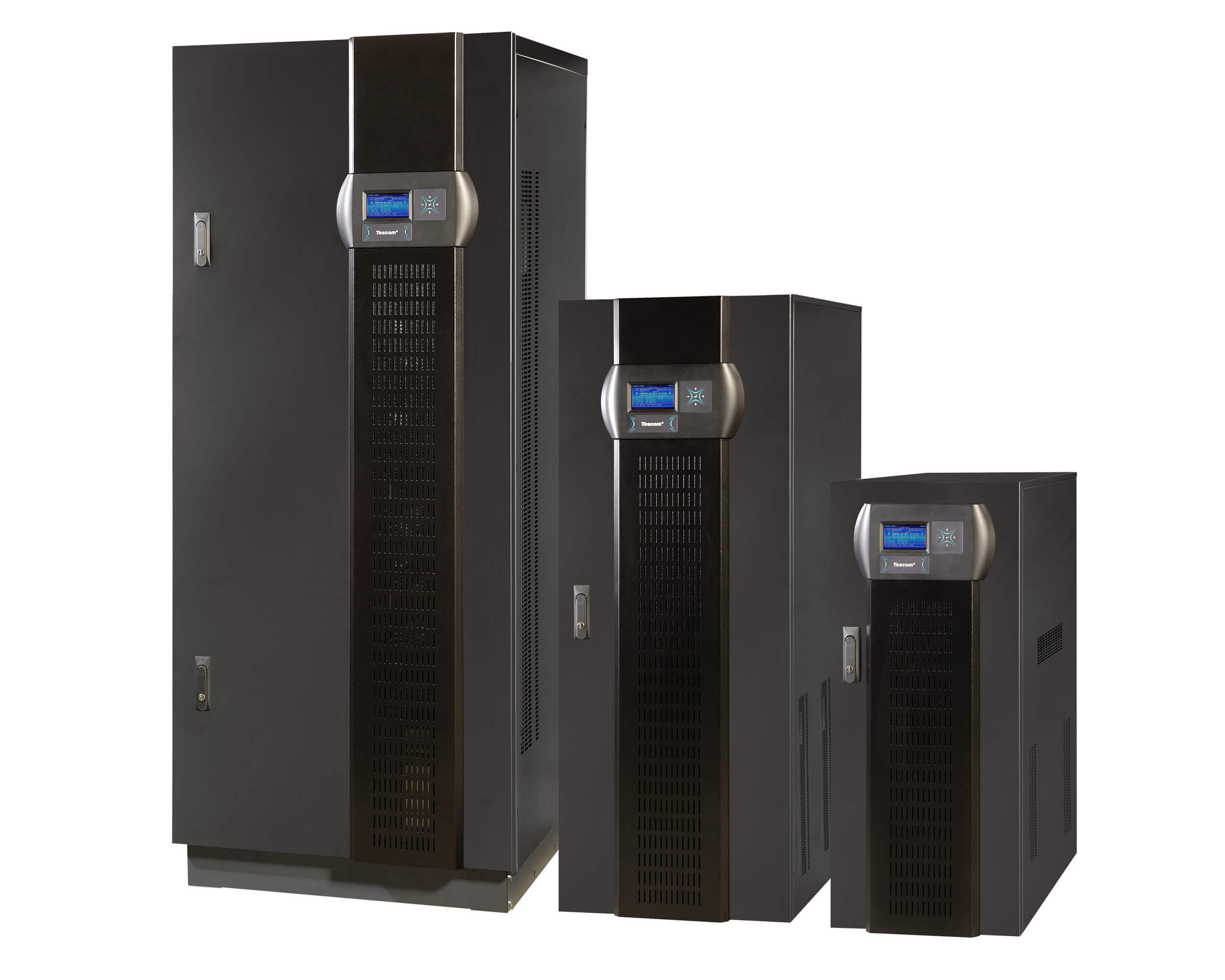

TESCOM DS|Power 110 Series 3/3Ph Uninterruptible Power Supplies

DSP UPS are three phase in/three phase out, IGBT rectifier, Intelligent Power Module technology based, high input power factor,low THDI and DSP controlled.


• Transformerless UPS topology
• Low input current total harmonic distortion (THD)
• High input power factor
• High efficiency up to 94%
• Cold start function
• Static and maintenance by-pass switch
• Output short circuit and overload protection
• External REPO switch input
• 192 events memory (192 events 4500 alarms)
• Clock and calender (battery supported)
• Automatic battery test, remaining battery time indicator
• Temperature compansiated charge system
• Regenerative backfeed function
• 2 RS232 serial ports and 12 dry contact outputs
• 3 DSP controlled modular structure
• Optional SNMP and MODBUS adaptors
• Optional Graphical and touch panel
• 2 years warranty
• 10 years spare parts support
• Manufactured according to EC Directive; EN62040

MODEL
DS305
110
DS310
110
DS315
110
DS320
110
DS330
110
DS340
110
DS350
110
DS360
110
DS380
110
Power (kVA)
5
10
15
20
30
40
50
60
80
INPUT
Voltage
200/208 VAC three-phase + N, ± 20% (220VAC +15% -25%)
Frequency
50Hz or 60Hz selectable, ± 5Hz
Power factor
> 0,99
Harmonic current distortion
≤ 4% *
Protection
fuses, voltage tolerance, frequency tolerance, input power limit
By-pass voltage
200/208/220 VAC three-phase + N, ± 10%
By-pass protection
short circuit, voltage tolerance, frequency tolerance, VAT transfer
OUTPUT
Power factor
0,9
Voltage
200/208/220 VAC three-phase + N,  ± 1%
Frequency
50Hz or 60Hz (selectable)
Frequency tolerance
line synchronized: ± 2% / Free running: ± 0,1% (adjustable)
Efficiency
up to 94%
Crest factor
3:1
Overload protection
100-125% for 10min, 125-150% for 1min, >150% load: by-pass
Other protections
Advanced short circuit, voltage tolerance, DC balance, regenerative load, current limiting
THD (at 100% linear load)
< 3%
BATTERIES
Type
VRLA AGM / GEL / NiCd
Nominal voltage
± 192 VDC
Float / End of disch. voltage
± 216VDC  /  ± 160VDC
Battery housing
Internal
Battery cabinet
Battery ambient temp. °C
25 °C
Protections
3 level alarm, battery fuses, charging current limit, temperature compensation(opt.)
Automatic testing
Standard every 72 hours(adjustable)
GENERAL
Standards
EMC(2004/108/EC) / LVD(2006/95/EC) - EN62040-1, EN62040-2, EN60950
User interface
4 lines LCD panel, Mimic leds, 5 vector buttons, Buzzer, graphical touch-panel (opt.)
Indicators
P-N voltage, P-P voltage,Current, Power, Crest factor, Frequency ,PF, Service time
Advanced
Self diagnostics, 4 maintenance time indicators, Calibration over RS232
Communication
2 x RS232 serial ports, 4 standard and 8 optional DRY contact alarm relays
Inputs
EPO input, Interactive battery panel input, Genset input
Genset kit
Standard (programmable)
Software
Standard T-Mon UPS Management Software (3 clients + 1 server management)
Alarm logging
Standard; with time & date 192 events, (optional 512 events)
Protections
Power module over-temperature, Over current, Temperature high alarm
Temperature range
0 °C - 40 °C
Protection degree
IP20 (other, on request)
Humidity / Altitude
90% max (noncondensed) / <1000m above sea level
Acoustic noise
≤ 57 dBA
≤ 62 dBA
≤ 64 dBA
≤ 68 dBA
Weight (kg.)
87
91
100
173
180
194
216
258
Dimensions (mm) HxWxD
1035x400x810
1440x515x850
OPTIONS
Input / Output voltage
Other special input/output voltages
Transformer
Galvanic isolation transformer at the input & output
Software
T-Mon Admin Multi UPS monitoring, T-Mon Server 50-100-200 clients, DLOG log loader
Comm. adaptors
SNMP, MODBUS, RS485, Remote Panel
Parralel operation
Up to 8 UPS

(*) Depending on power and input/output conditions.
