300 UPS SERIES

3/3 Uninterruptible Power Supplies

10kVA - 15kVA - 20kVA - 30kVA - 40kVA - 60kVA - 80kVA

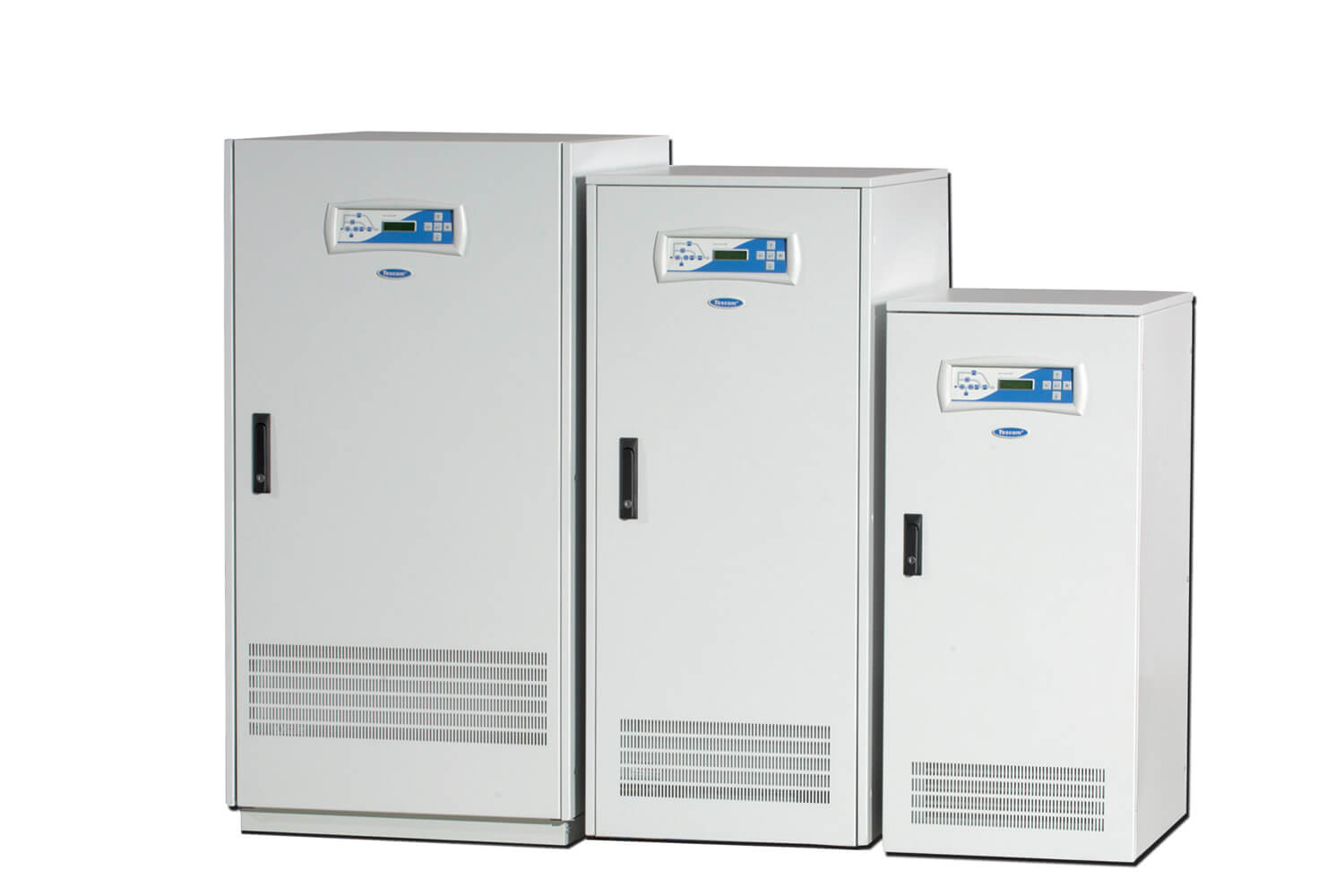

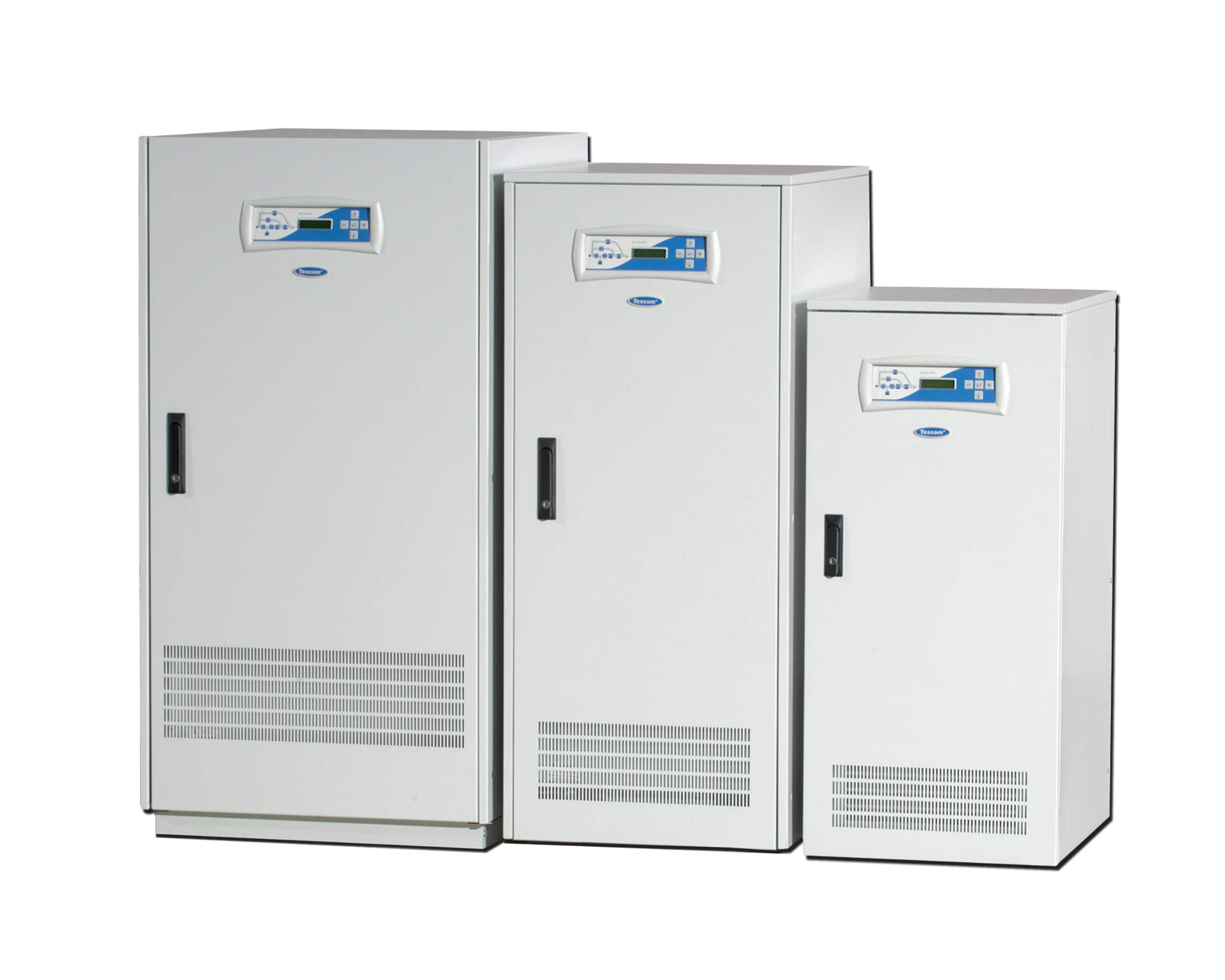

TESCOM 300 Series 3/3Ph Uninterruptible Power Supplies

Tescom 300 series are, True online, Double conversion UPS Systems, manufactured with the state of the art, PWM and IGBT technology, producing microprocessor controlled pure sinewave output to critical loads.


• Output isolation transformer
• Up to 91% efficiency
• Static by-pass
• LCD front panel
• 128 events alarm memory (4000 alarms)
• RS232 and relay contacts
• Custom input and output voltage ranges
• SNMP compatible communication
• T-MON remote monitoring software
• Parralel operation up to 4 devices
• High performance at nonlinear loads
• Custom input voltage and frequency ranges
• 2 years warranty
• 10 years spare parts support
• Manufactured according to EC Directive; EN62040

MODEL
310
315
320
330
340
360
380
Power (kVA)
10
15
20
30
40
60
80
INPUT
Voltage
380/400 VAC 3P + N + G  ± 15%
By-pass voltage
380/400 VAC 3P + N  ± 10%
Input frequency
50Hz (60Hz on request)  ± 5%
OUTPUT
Power (kW)
8
12
16
24
32
48
64
Power factor
0,8
Voltage
380/400 VAC 3P + N
Voltage stability
Balanced load: ± 1%, Unbalanced load: ± 2%, Step load: ± 5%
Voltage recovery time
After step load: max. 25ms
Frequency
50Hz (60Hz on request)
Frequency tolerance

Line synchronized: ± 2% , free running: ± 0,2%
Efficiency (at 100% load)
89-91%
90-92%
Crest factor
3:1
Overload protection
100%-125% load: 10 min., 125%-150% load: 1 min., >150% load: by pass
Short circuit protection
Electronic short circuit protection
Voltage THD
Linear load: < 3%
Non linear load: < 5%
BATTERIES
Type
Sealed Lead Acid - Maintenance Free
Number of batteries
30
Float charging voltage
405 VDC
End of discharge voltage
300 VDC
Battery ambient temperature
25ºC
Battery protection
Automatic circuit breaker
Battery test
Automatic every 72 hours
GENERAL
Standards
EN 62040-1,EN62040-2
Serial communication
Dry contacts & RS232
Software
T-Mon UPS Management Software (3 clients, +1 server management std.)
Temperature range
0°C - 40°C
Ventilation
Forced air cooling
Relative humidity
< 90% (non-condensing)
Protection degree
IP20
Altitude
< 2000m above sea level
Acoustic noise
< 56 dBA
< 60 dBA
Weight without batteries (kg)
220
260
284
305
404
496
580
Dimensions (mm) HxWxD
1150x505x655
1390x575x820
1450x720x820
OPTIONS
Different input / output voltage
Please ask
Input transformer
Galvanic isolation transformer at the input (in external cabinet)
Input THD
10% (with 12 pulse or 18 pulse rectifier, according to UPS range)
%5 (with 18 pulse rectifier, + filter), up to 100kVA
Input power factor
0.95 - 0.98 (with 18 pulse rectifier)
Adaptors
SNMP, MODBUS, Remote Mon. Panel, RS485
Parallel operation
N+1 (up to 4 units)
(*):
In 18Pulse & 12Pulse applications, the standard chassis dimensions may change.
