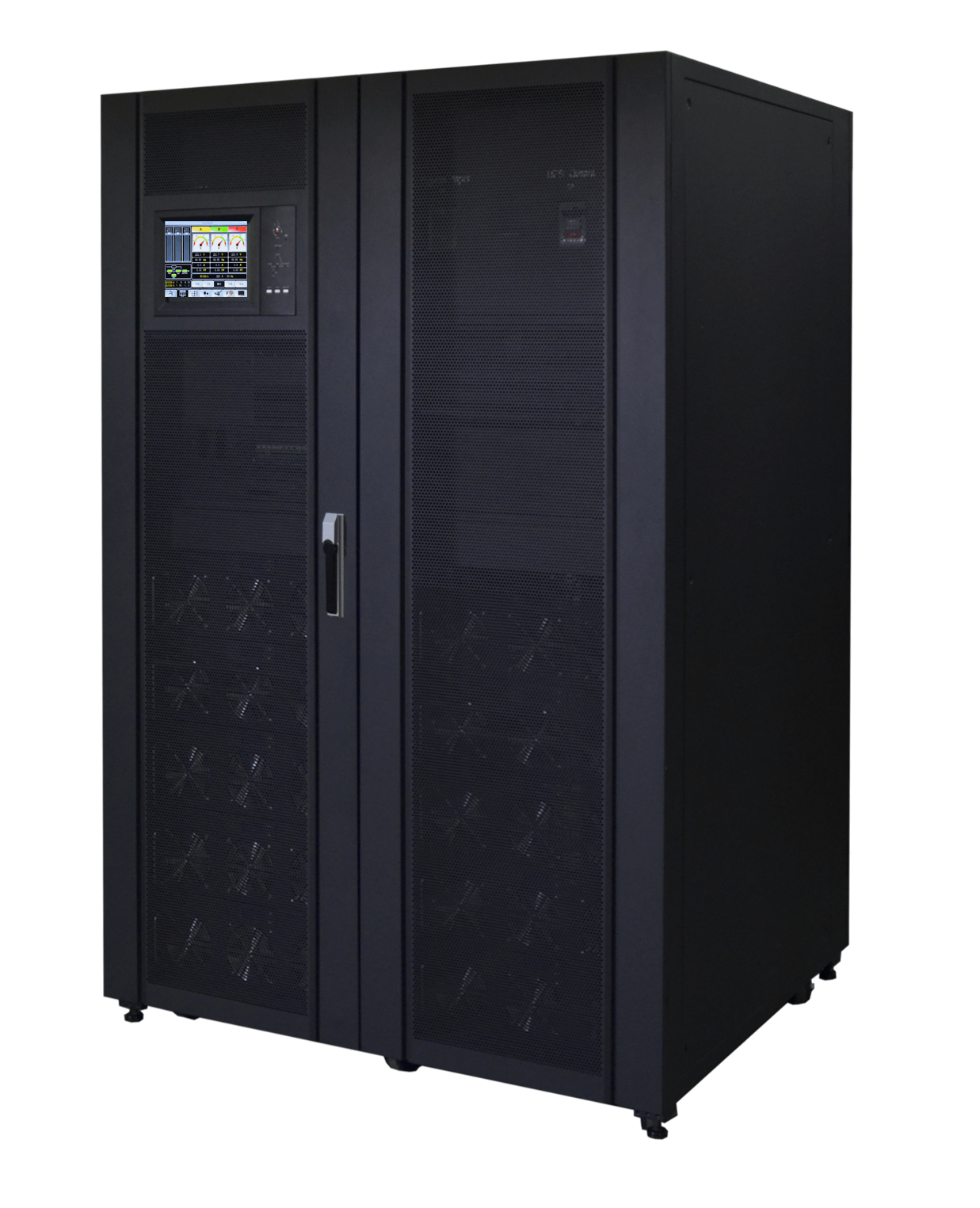

MTI500 UPS SERIES

Modular Uninterruptible Power Supplies

40kVA - 500kVA

MTI500 series modular, online UPS ranging from 40kVA to 500kVA is designed to protect any critical load for medium and large data center achieving maximum availability.

The MTI500 Modular Ups Series feature the latest technology of 3 level technology and PFC input control, which guarantees high efficiency of 96% and ultra-reliability. Its compact design ensures power density of 500kVA in one cabinet, 3 units can be paralleled for capacity redundancy up to 1500kVA, making it an excellent choice for medium and large facilities


Compact design
500kVA in one cabinet, footprint less than 1.5m², saving valuable room space

High power density
50kVA power module in 4U height, easy for capacity expansion

High efficiency
Advanced 3-level technology quarantees high efficiency operating in double conversion mode up to 96%

Intelligent charging management
The system intelligently control the whole process of the charging and discharging, effectively improve the life time of the battery.

High scalability
The system can be configured from 40kVA to 500kVA in one single cabinet, 3 units in parallel for a capacity up to 1500kVA

Friendly HMI
10.4” touch color LCD with graphic display, independent LCD for each power module

Smart sleep function
System can intelligently shutdown some power modules to increase total load rate, achieving higher efficiency



MODEL
MTI-5400/40
MTI-5500/50
Capacity
40 - 1500kVA
Power module type
TPM40 (40kVA/40kW)
TPM50 (50kVA/45kW)
INPUT
Phase
3P + N + G
Voltage
380V/400V/415VAC (Phase - Phase)
Frequency
50Hz/ 60Hz
Power factor
> 0.99
THDi

< %3 @ 100% linear load
Voltage range
304~478Vac (Line-Line),full load 228V~304Vac (Line-Line),load decrease linearly according to the min phase voltage
Frequency range
40Hz ~ 70Hz
OUTPUT
Voltage
380V/400V/415VAC
Voltage regulation
%1.5
Voltage THD

< %1 (linear load), < %5,5 (non-linear load)
Power factor
1
0.9
Crest factor
3:1
Overload capability

110% for 1 hour, 125% for 10 minutes, 150% for 1 minute, > 150% for 200ms
BATTERY
Voltage
± 240VDC for 40 batteries (selectable battery number 36-44)
Charge power
20%*System power
Charge voltage precision
± %1
SYSTEM
Paralelling
Up to1500kVA
System efficiency
Normal mode (AC/AC) from 30% to 100% load 96% efficiency; ECO mode: 99%; Battery mode: 96%
Display
10.4" Color touch screen LCD + LED + Keyboard
IP class
IP20
Interface
Standard: RS232, RS485, USB, Dry contacts (programmable); Optional: SNMP, AS400, Parallel kit, Battery cold start (standard for 250kVA and above), Lightning protection components, Dust filter, LBS
Operation / Storage temperature
0 ~ 40°C / - 25 ~ 70°C
Relative humidity
0 ~ 95% (non-condensing)
Noise level
72dB @ 100% load (1 meter away), 69dB @ 45% load (1 meter away)
PHYSICAL SPECIFICATIONS
Net weight (kg)
Cabinet
2-Slot Cabinet: 210 / 4-Slot Cabinet: 350/ 6-Slot Cabinet: 490/ 10-Slot Cabinet: 900
Power module
44
45
Dimensions (mm) HxWxD
Cabinet
2-Slot Cabinet: 1150x600x980, 4-Slot Cabinet: 1600x650x960,  6-Slot Cabinet: 2000x650x960, 10-Slot Cabinet: 2000 x1300x1100
Power module
(4U)178x510x700
