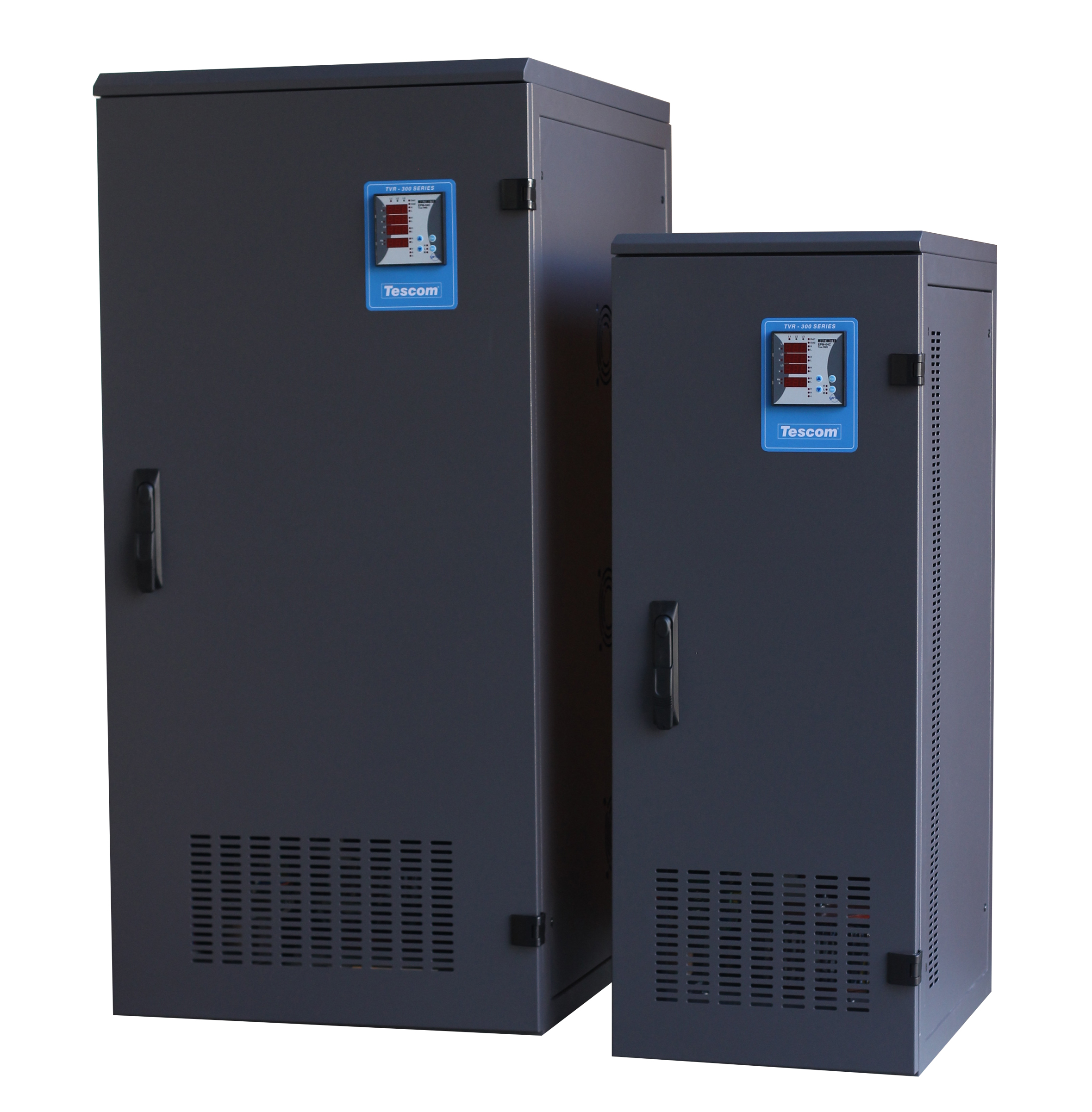

TVR 33 SERIES

3 Ph / 3 Ph Full Automatic Voltage Regulators

10,5kVA - 15kVA - 22,5kVA - 30kVA - 45kVA - 60kVA - 75kVA - 100kVA - 120kVA - 150kVA


• Non-linear charges drive
• 3 phase input 3 phase output
• Wide power and voltage interval
• High reliability thanks to Microprocessor and Smart Driver
• Load transfer to Bypass via pole charge switch
• High efficiency
• Safe and economic usage
• Overcurrent and overload protection
• Digitally displayed status, input & output measurements

MODEL
TVR33010
TVR33015
TVR33022
TVR33030
TVR33045
TVR33060
TVR33075
TVR33100
TVR33120
TVR33150
Power (kVA)
10,5
15
22,5
30
45
60
75
100
120
150
Input voltage range correction
190 - 485 / 275 - 450 / 310 - 450 VAC
Output voltage
380 / 400 / 415 VAC RMS ± 1 %
Operating frequency
47...65 Hz
Overload
10 Sec. 200 % Load
Correction (control) speed
~ 90 Volt / Sec.
Upturn Period
~ 90 Volt / Sec. ( 160 VAC - 250 VAC)
Total Efficiency
> 96 %
Working Principle
Servo Motor, Microprocessor Controlled, Full Automatic
Measured Value Monitor
TESCOM TRUE RMS Panel Voltmeter (74x74mm) output voltage and line voltage monitorization
Mechanical By-pass
Manually Controlled Line - PAKO Switch Selects Voltage Regulator" Switch Turn On / Off
Working temperature
-10 °C / 50 °C
Protection level
IP 20
Relative humidity
< 90 %, DIN ( 40040 )
Working height
2000 meters
Acoustic noise
< 50 dB (1m²)
Documents
CE /  ISO 9001
DIMENSIONS
HxWxD (cm)
110 x 40 x 63
119 x 40 x 63
140 x 88 x 60
165 x 93 x 65
Weight (kg)
95
105
125
145
165
260
280
310
400
425
