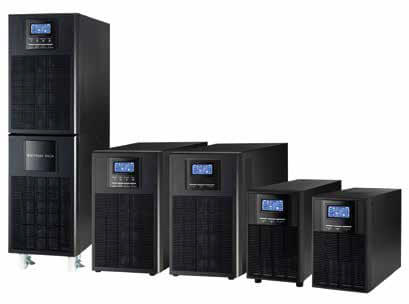

TEOS 100 UPS SERIES

1/1 Uninterruptible Power Supplies

1kVA - 10kVA



• True double-conversion
• Microprocessor control optimizes reliability
• Input power factor correction
• Output power factor 0.9
• Wide input voltage
• Converter mode available
• ECO mode for energy saving (Only available for 1-3kVA models)
• Generator compatible
• Adjustable battery numbers only available for 6/10kVA models
• Adjustable charging current via LCD or software (1A~ 6A) only available for 6/10kVA models
• Emergency power off (EPO) function is only available for 6/10kVA models
• Comprehensive display allows easy monitoring and access to UPS status

MODEL
TEOS 1000
TEOS 2000
TEOS 3000
TEOS 106
TEOS 110
Rated Power
1000VA/900W
2000VA/1800W
3000VA/2700W
6000VA/5400W
10000VA/9000W
Nominal Voltage
100/110/115/120/127VAC or 200/208/220/230/240VAC
208/220/230/240VAC
Power factor
≥ 0.99 @ Nominal Voltage (100% load)
Frequency range
40-70 Hz (50/60 Auto-sense)
46~54Hz or 56~64Hz
OUTPUT
Voltage Regulation
±1%
Frequency range
47~ 53 Hz or 57 ~ 63 Hz (Synchronized Range) 50 Hz or 60Hz ± 0.5% (Batt. Mode)
46~54 Hz or 56~64 Hz (Synchronized Range) 50 Hz or 60Hz ± 0.1 Hz (Batt. Mode)
Harmonic distortion
≤ 3 % THD (Linear Load) ≤ 6 % THD (Non-linear Load)
≤ 3 % THD (Linear Load) ≤ 5 % THD (Non-linear Load)
Current Crest Ratio
3:1
Waveform (Batt. mode)
Pure Sinewave
EFFICIENCY
AC mode
88%
89%
90%
92%
93%
Battery mode
83%
85%
88%
90%
91%
BATTERY
Battery type
12V / 9AH
Numbers
2
4
6
16-20
16-20
Typical recharge time
4 hours recover to 90% capacity
9 hours recover to 90% capacity
DISPLAY
LCD
Load level, Battery level, AC mode, Battery mode, Bypass mode, and Fault indicators
COMMUNICATION
Optional SNMP
Power management from SNMP manager and web browser
PHYSICS CHARACTERISTIC
Dimensions (mm) HxWxD
220x145x282
220x145x397
318x190x421
688x190x369 - 688x190x442
688x190x442
Net weight (kg)
9.8
17
27.6
61 - 74
66 - 76
ENVIRONMENT
Humidity
20-90 % RH @ 0- 40°C (non-condensing)
0-95% RH @ 0-40°C (non-condensing)
Acoustic noise
Less than 50dBA @ 1 Meter
Less than 55dBA @ 1 Meter Less than 58dBA @ 1 Meter
