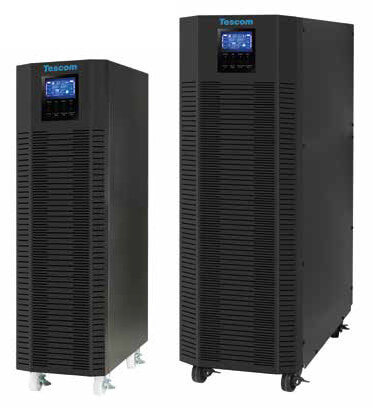

TEOS 200 UPS SERIES

3/1 Uninterruptible Power Supplies

10kVA - 20kVA



• True double-conversion
• Output power factor 0.8
• Wide input voltage range
• 50Hz frequency converter mode
• Emergency power off function (EPO)
• Generator compatible
• SNMP+USB+RS-232 multiple communications
• 3-stage extendable charging design for optimized battery performance
• Optional maintenance bypass switch

MODEL
TEOS 210
TEOS 215
TEOS 220
Rated Power
10000VA / 8000W
15000VA / 12000W
20000VA / 16000W
Nominal Voltage
3x400VAC (3Ph+N)
Frequency range
46Hz ~ 54Hz
OUTPUT
AC Voltage Regulation
±1%
Frequency range
46 ~ 54Hz (synchronized range)
Frequency range
50Hz ± 0.1Hz (batt. mode)
Harmonic distortion
≤ 3 % THD (Linear Load) ≤ 5 % THD (Non-linear Load)
Current Crest Ratio
3:1(max)
Waveform (Batt. mode)
Pure Sinewave
EFFICIENCY
AC mode
91%
Battery mode
91%
BATTERY
Battery type
12V / 9AH
Numbers
16-20
16-20
16 pcs x 2 strings - 20 pcs x 2 strings
Typical recharge time
9 hours recover to 90% capacity
DISPLAY
LCD
UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions
COMMUNICATION
Optional SNMP
Power management from SNMP manager and web browser
PHYSICS CHARACTERISTIC
Dimensions (mm) HxWxD
688x190x422
826x250x815
Net weight (kg)
66-76
67-78
125-145
ENVIRONMENT
Humidity
0-95% RH @ 0-50°C (non-condensing)
Acoustic noise
Less than 60dBA @ 1 Meter
