MTR UPS SERIES

Modular Uninterruptible Power Supplies

10kVA - 90kVA

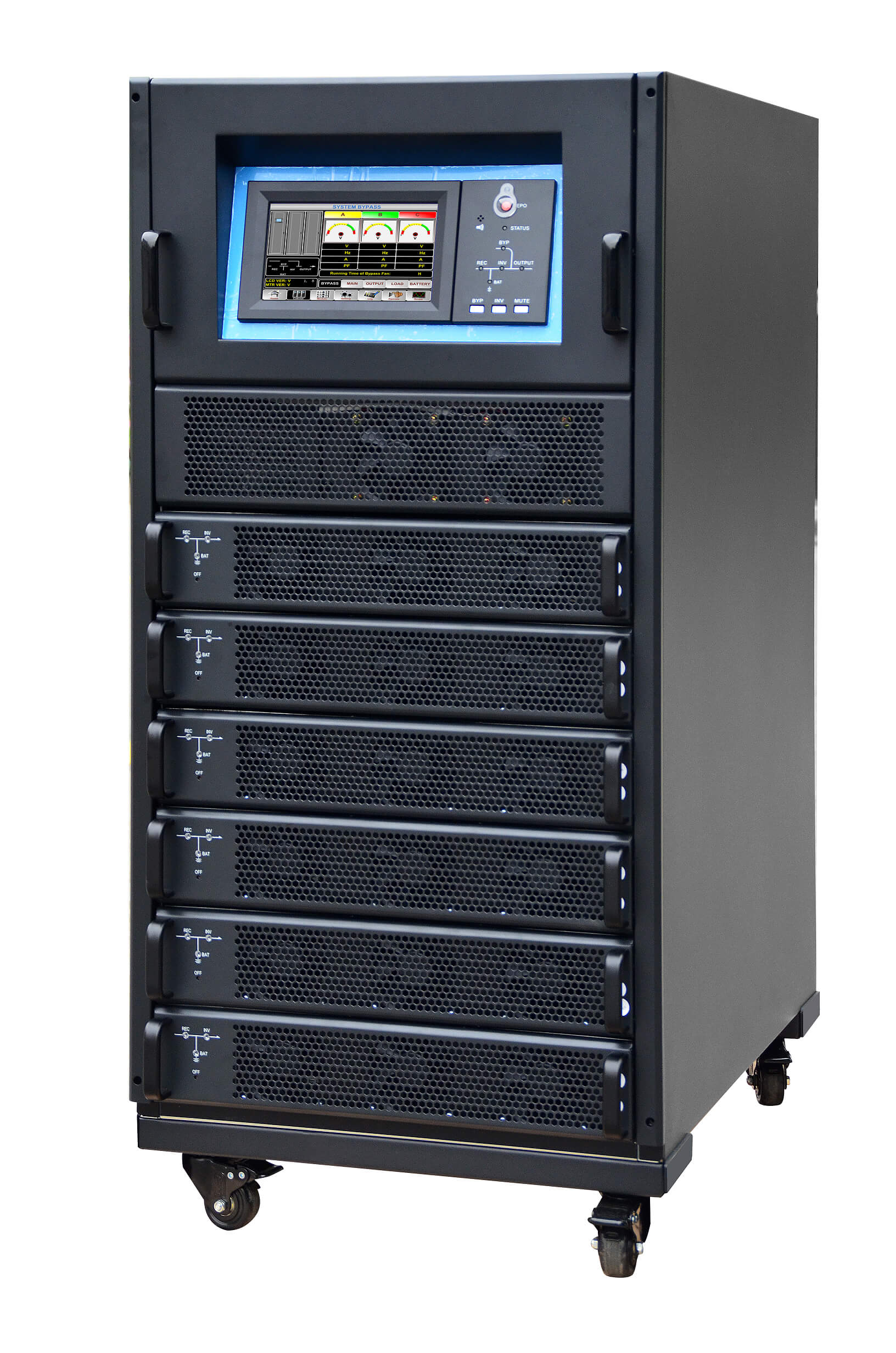

Rack modular design

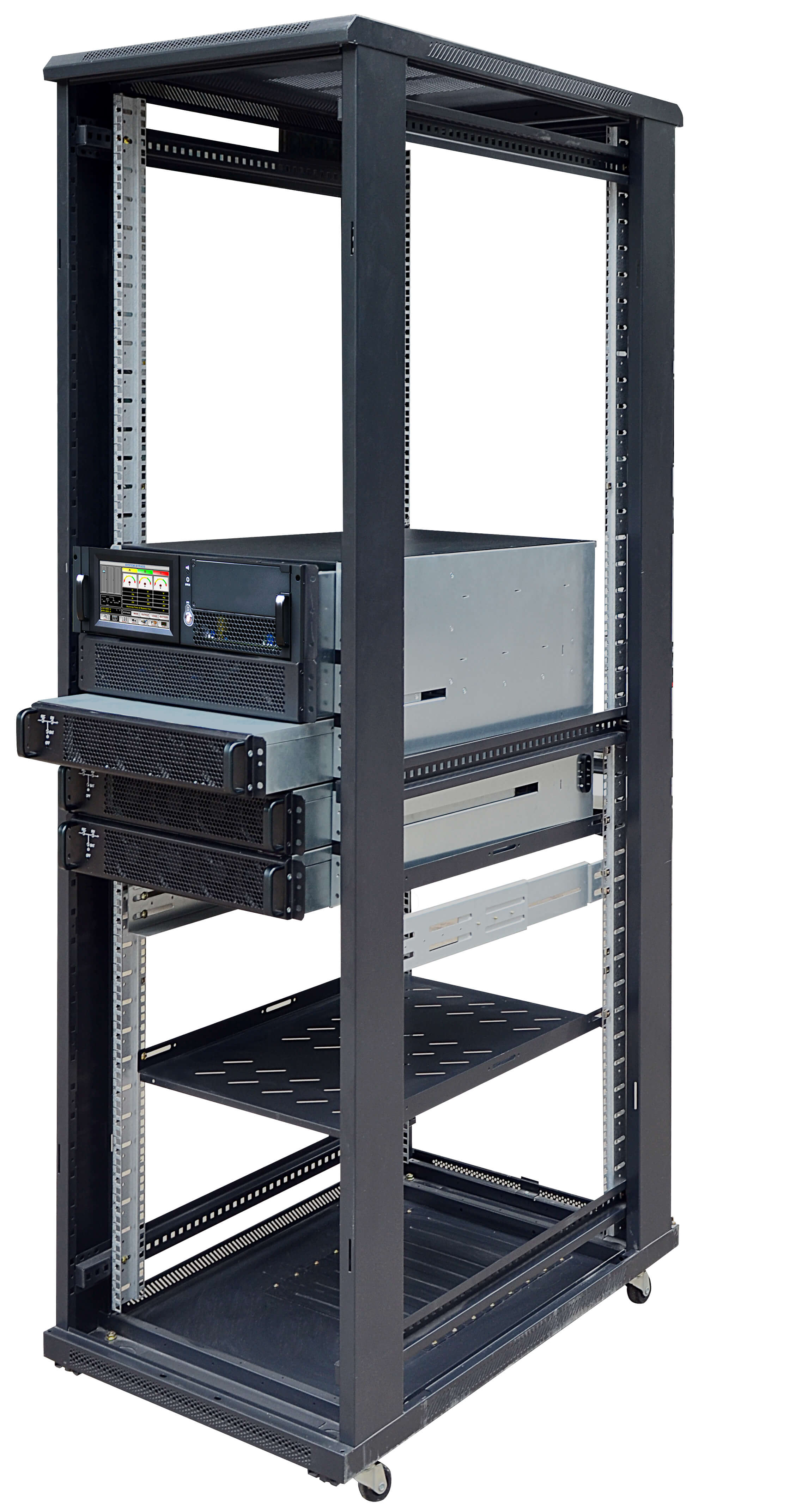

Modular design, compatible with 19” standard rack
cabinet, convenient to be integrated with servers

High power density

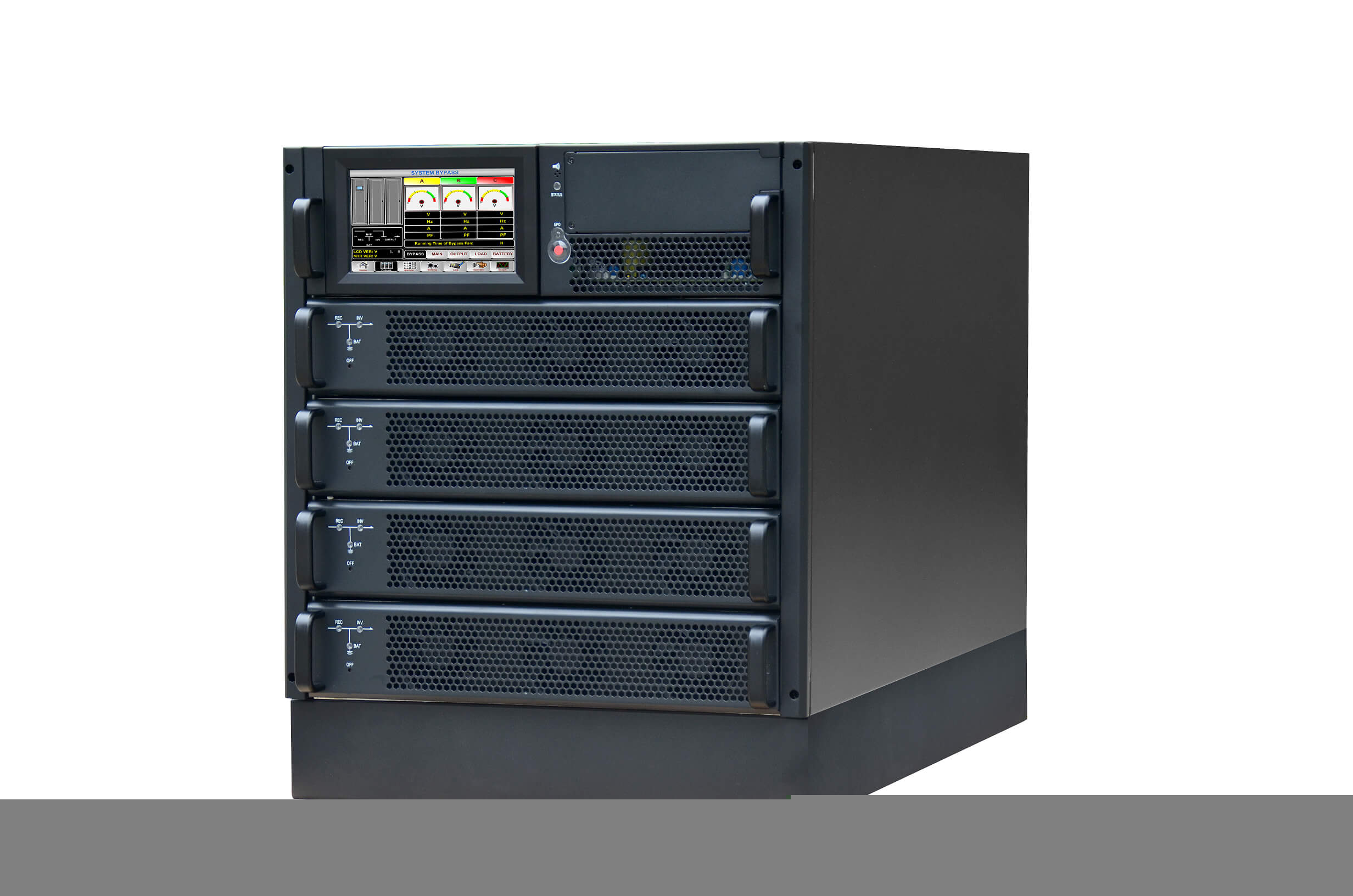

10/15kVA (10/15kW) power module in 2U height, saving great amount of space, easy for capacity expansion

Integrated solution for data center
UPS can be integrated with battery cabinet, PDU and external maintenance bypass, offering excellent choice for data center

Intelligent charging management
The system intelligently control the whole process of the charging and discharging, effectively improving the life time of the battery

Flexible configuration
The system can be configured to 3/3, 3/1 and 1/1 without derating

Friendly interface
7” touch color LCD with graphic display, more information displayed and easier for customer to operate

Smart sleep function
System can intelligently shutdown some power modules to increase total load rate, achieving higher efficiency

Self-aging mode
Energy internal circle technology, system can run with full load ,saving more than 90% energy



MODEL
MTR-020/10X
*MTR-030/10X
MTR-040/10X
MTR-060/10X
MTR-030/15X
*MTR-045/15X
MTR-090/15X
Capacity
20kVA/20kW
30kVA/30kW
40kVA/40kW
60kVA/60kW
30kVA/30kW
45kVA/45kW
90kVA/90kW
Power module type
PM10X (10kVA/10kW)
PM15X (15kVA/15kW)
INPUT
Phase
(1/1P - 3/1P - 3/3P) 3P+ N + G (380/400/415V)  ~  1P + N + G ( 220/230/240V)
3P+ N +G (380/400/415V)
Voltage range
304-478Vac (line-line),100% load;
228-304Vac load derated from 100% - %75 linearly
Frequency range
40Hz-70Hz
Power factor
> 0.99
THDi
** THDi < 4% @ 100% linear load
OUTPUT
Voltage
(1/1P - 3/1P - 3/3P) 3P+ N + G (380/400/415V)  ~  1P + N + G ( 220/230/240V)
3P+ N +G (380/400/415V)
Voltage regulation
1.5%
Power factor
1
THDu
THD < 1% (linear load ),THD < 5.5% (non-linear load)
Crest factor
3:1
Overload capacity
110% for 1 hour; 125% for 10 min; 150% for 1 min ; 150% for 200 ms
BATTERY
Voltage
± 240 VDC for 40 batteries (selectable battery number 36-44)
Charge power
20%* System power
Charge voltage precision
±1%
SYSTEM
System efficiency
Normal mode: 95%; ECO mode: 98%; Battery mode: 94.5%
Display
7.0” Color touch screen LCD + LED + Keyboard
IP Class
IP20
Interface
Standart: RS232, RS485, dry contacts
Optional:  Expansion dry contact card
Operation / Storage temperature
0-40℃/-25-70℃
Relative humidity
0-95% (non-condensing)
Noise level
56dB (1 meter away)
58dBA (1 meter away)
Options
Parallel operation, Battery compansated battery charging, Movable cabinet with castors
PHYSICAL
Weight (kg)
Cabinet
42
55
51
85
42
55
85
Power module
15.Mar
15.May
Dimension (mm) HxWxD
Cabinet
398x485x697
575x485x751
575x485x697
1033x485x751
398x485x697
575x485x751
1033x485x751
Height
7U
11U
11U
21U
7U
11U
21U
Power module
(2U) 85x436x590
(*) Parallel operation
(**) Only for 3/3 phase
