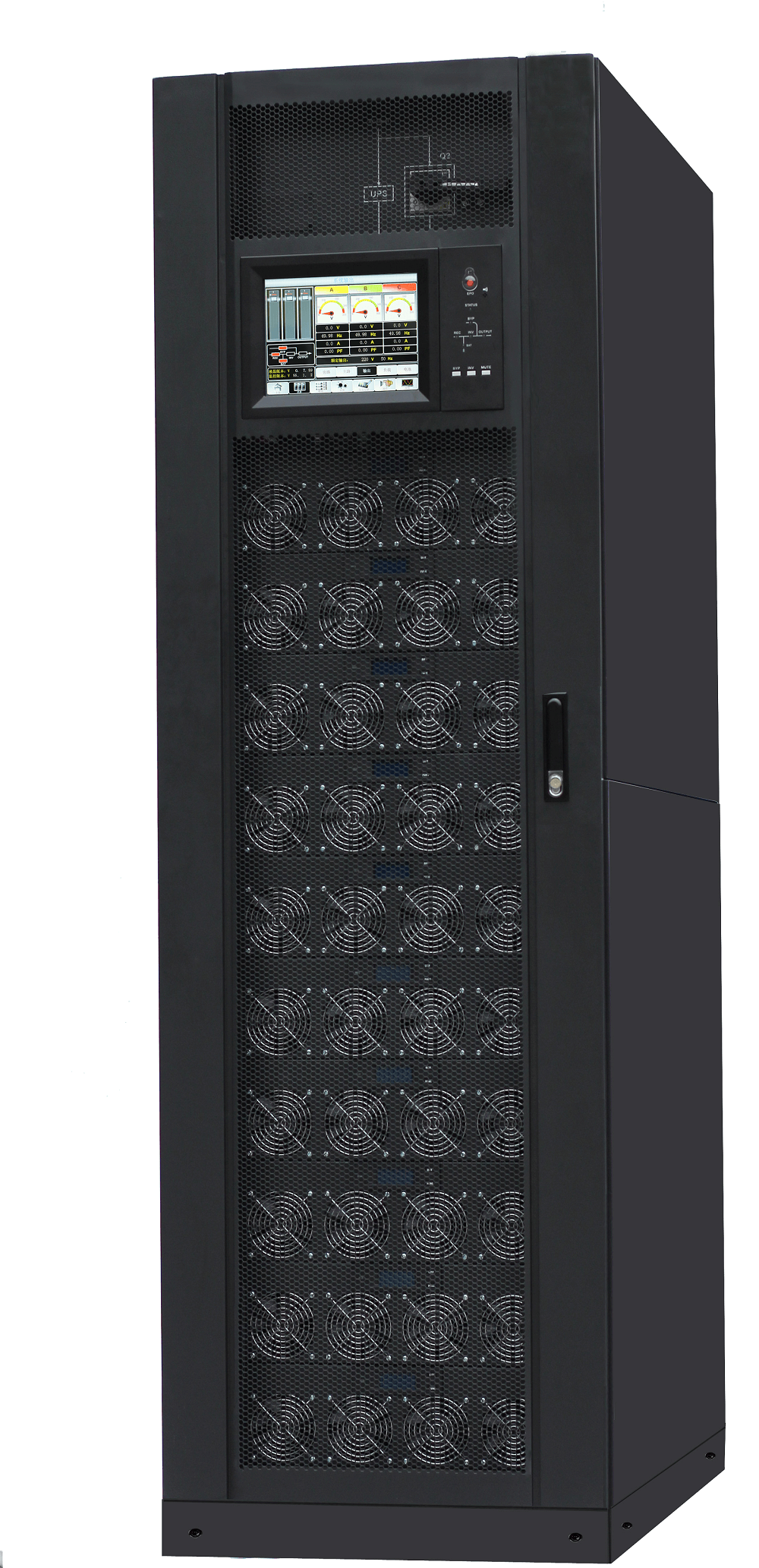

MT300 UPS SERIES

Modular Uninterruptible Power Supplies

30kVA - 900kVA

The MTI300 Series Modular UPS provides the most compact footprint of less than 2m²  with maximum capacity of 900kVA. MTI300/30kVA is considered to be the best power protection solution for large data centers, as well as for sensitive electronics.

The MTI600 Series Modular UPS provides power capacity of 600kVA in one single system. With the most advanced full DSP control technology, health management system and smart monitoring system, it has been proven to be the best choice for large data centers, as well as for sensitive electronics.


• 3 Level topology
• Modular design with N+X redundancy
• Online hot swapping, by-pass and power module feature
• Optional dual input
• High power density with footprints of less than 2m² up to 900kVA in parallel, 30kVA power module with only 3U height
• High power density of 600kVA in one single cabinet, 30kVA power module with only 3U height
• Green and energy saving: AC/AC efficiency > 95%, input power factor > 0.99 while input THDi < 3%
• Full DSP control of high stability, reliability and safety
• Integrated IGBT module with improved performance and reduced size
• Excellent input performances for complete compatibility with input PF of 99% and wide range of voltage
• Self-Aging mode for full load test with less than 10% of the total power capacity needed
• Smart Sleeping mode for energy saving and prolong the life time of the system
• Optimized battery management, intelligently control the whole process of the charging and discharging, effectively improve the life time of the battery
• Battery cold start, UPS can be powered on from the battery without utility
• Automatically record the critical wave information when fault happens, easy for trouble shooting
• Independent LCD display for each power module with self-starting function
• Programmable dry contacts, the function of each port can be defined by users
• Friendly human machine interface with colorful touch screen of 10.4 inches

MODEL
MTI3180/30
MTI3300/30
MTI3600/30
Capacity
30 - 900kVA
30 - 600kVA
Power module type
TPM30 (30kVA/27kW)
INPUT
Phase
3 Phases + Neutral + Ground
Voltage
380V/400V/415V (line to line)
Frequency
50Hz / 60Hz
Power factor
> 0.99
THDI
THDi < 3% @ 100% linear load
Voltage Range
304~478Vac (Line-Line),full load 228V~304Vac (Line-Line),load decrease linearly according to the min phase voltage
Frequency range
40Hz~70Hz
OUTPUT
Voltage
380V/400V/415V
Voltage regulation
1.5%
THDu
THD < 1% (linear load), THD < 6% (none linear load)
Power factor
0.9
Crest factor
3:1
Overload capability
1 hour for 110% load; 10 minutes for 125% load; 1 minutes for 150% load; 200ms for > 150% load
BATTERY
Voltage
± 240 VDC for 40 batteries (selectable battery number 36-44)
Charge power
20%*System Power
Charge voltage precision
± 1%
SYSTEM
Parallel (cabinet)
5
3
−
System efficiency
Normal mode: 95% ; ECO mode: 99% ; Battery mode: 95%
Display
10.4" LCD + LED, Color touch screen + Keyboard
IP Class
IP20
Interface
Standard: RS232, RS485, Dry contacts, USB; Optional: SNMP
Operation / storage temperature
0 ~ 40°C / -40 ~ 70°C
Relative humidity
0 ~ 95% (non-condensing)
Noise
65dB @100% load, 62dB @ 45% load (1 meter away)
72dB @100% load, 68dB @ 45% load (1 meter away)
PHYSICAL
Net weight (kg)
Cabinet
6-Slot Cabinet: 165
10-Slot Cabinet: 220
660
Power module
TPM30kVA: 34
Dimension (mm) HxWxD
Cabinet
6-Slot Cabinet: 1600x600x1100
10-Slot Cabinet: 2000x600x1100
20-Slot cabinet: 2000x2000x1050
Power module
TPM30kVA: (3U) 134x460x790
