200 UPS SERIES

3/1 Uninterruptible Power Supplies

6kVA - 7,5kVA - 10kVA - 15kVA - 20kVA - 30kVA - 40kVA

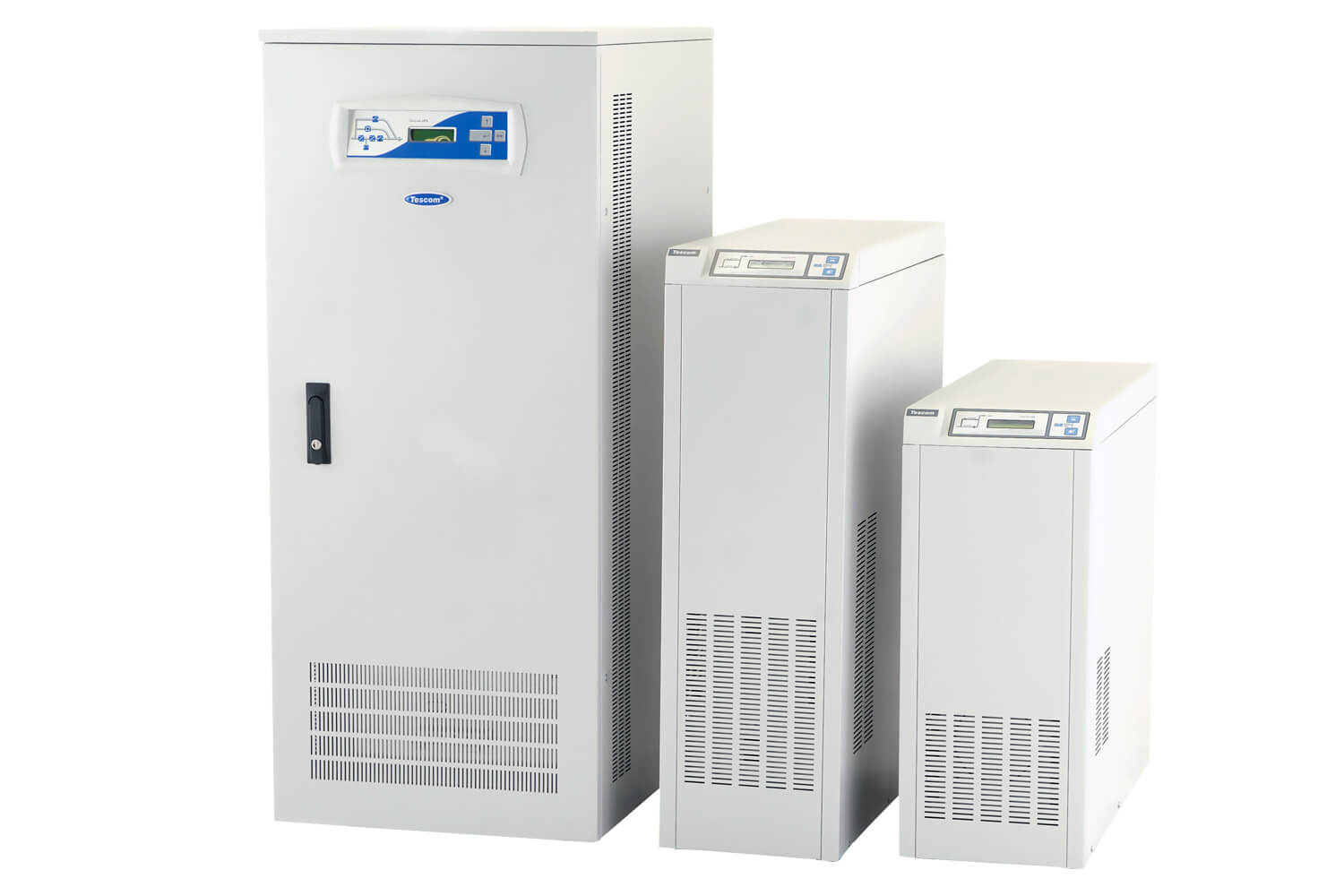

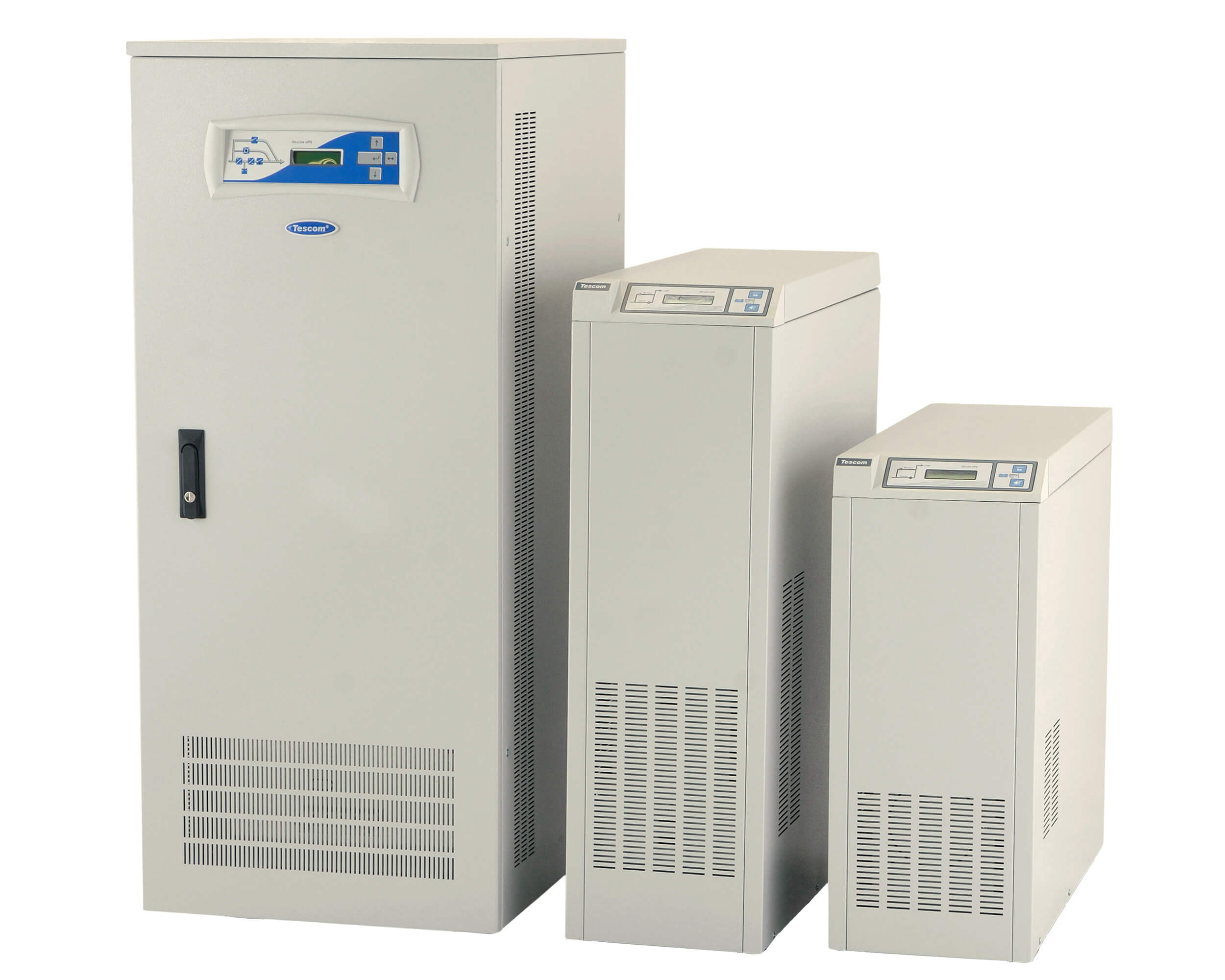

TESCOM 200 Series 3/1Ph Uninterruptible Power Supplies

Tescom 200 series are, True online, Double conversion UPS Systems, manufactured with the state of the, PWM and IGBT technology, producing microprocessor controlled pure sinewave output to critical loads.


• Output isolation transformer
• Up to 91% efficiency
• Static by-pass
• LCD front panel
• 64 events memory
• RS232 and relay contacts
• Custom input and output voltage ranges
• SNMP compatible communication
• T-MON remote monitoring software
• Parallel operation up to 4 devices
• 2 years warrantly
• 10 years spare parts support
• Manufactured according to EC Directive; EN62040

MODEL
206
207
210
215XA
220XA
230XA
240XA
Power (kVA)
6 kVA
7,5 kVA
10 kVA
15 kVA
20 kVA
30 kVA
40 kVA
INPUT
Voltage
380/400 VAC 3P + N + G  ± 15%
By-pass voltage
220/230 VAC + P + N  ± 10%
Frequency
50Hz / 60Hz  ± 5%
OUTPUT
Power (kW)
4,2
5,25
7
10,5
14
21
28
Power factor
0,7
Voltage
220/230 VAC + P + N  ± 1%
Frequency
50Hz (60Hz on request)
Frequency tolerance

Line synchronized: ± 2% , free running: ± 0,2%
Efficiency (at 100% load)
Up to 90%
Crest factor

3:1
Overload protection
100%-125% load: 10 min., 125%-150% load: 1 min., > 150% load: by pass
Short circuit protection
Electronic short circuit protection
Voltage THD
Linear load: < 3%
Non linear load: < 5%
BATTERIES
Type
Sealed Lead Acid - Maintenance Free
Number of batteries
20
30
Float charging voltage
270 VDC
405 VDC
End of discharge voltage
200 VDC
300 VDC
Battery cabinet
Internal for standard time
Battery ambient temperature
25°C
Battery protection
Automatic circuit breaker
Battery test
Optional
Standard
GENERAL
Standards
EN 62040-1,EN62040-2
Maintenance bypass switch
Optional
Standard
Serial communication
Dry contacts & RS232
Software
T-Mon UPS Management Software (3 clients, +1 server management std.)
Temperature range
0°C - 40°C
Ventilation
Forced air cooling
Relative humidity
< 90% (non-condensing)
Protection degree
IP20
Altitude
< 2000m
Acoustic noise
< 50 dBA
< 55 dBA
Weight without batteries (kg)
106
110
125
130
195
217
335
Dimensions (mm) HxWxD
950x265x740
1220x500x650
1390x575x820
OPTIONS
Different input / output voltage
Please ask
Input transformer
Galvanic isolation transformer at the input (in external cabinet)
Input power factor
Input power factor corrector (> 0.97)
Adaptors
SNMP, MODBUS, Remote Mon. Panel, RS485
Parallel operation
N+1 (up to 4 units)
