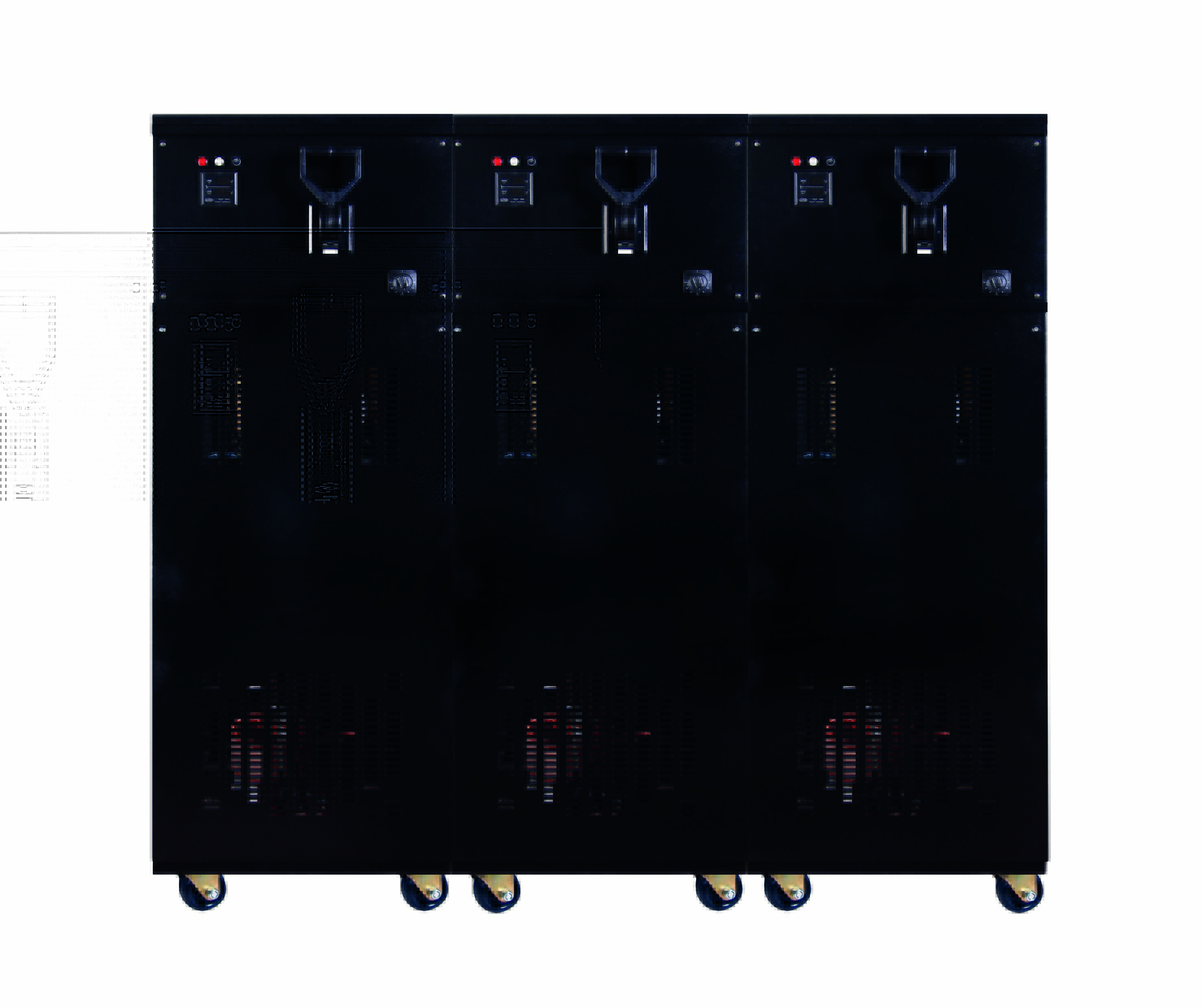

TVR 33 H SERIES

3 Ph / 3 Ph Full Automatic Voltage Regulators

200kVA - 250kVA - 300kVA - 400kVA - 500kVA - 600kVA - 800kVA - 1000kVA - 1250kVA - 1500kVA - 1600kVA - 2000kVA - 2500kVA - 3000kVA


• Stable and uninterrupted supply
• Non-linear charges drive
• 3 phase input 3 phase output
• Wide power and voltage interval
• High reliability thanks to Microprocessor and Smart Driver
• Fast Regulation
• High efficiency
• Load transfer to Bypass via pole charge switch
• Safe and economic usage
• Overcurrent and overload protectio
• Digitally displayed status, input & output measurements

MODEL
TVR
33200
TVR
33250
TVR
33300
TVR
33400
TVR
33500
TVR
33600
TVR
33800
TVR
331000
TVR
331250
TVR
331500
TVR
331600
TVR
332000
TVR
332500
TVR
333000
Power (kVA)
200
250
300
400
500
600
800
1000
1250
1500
1600
2000
2500
3000
Input voltage range correction
190 - 485 / 275 - 450 / 310 - 450 VAC
Output voltage
380 / 400 / 415 VAC RMS ± 1 %
Operating frequency
47...65 Hz
Overload
10 Sec. 200 % Load
Correction (control) speed
~ 90 Volt / Sec.
Upturn Period
~ 90 Volt / Sec. ( 160 VAC - 250 VAC)
Total Efficiency
&> 97 %
Mechanical By-pass
Manually Controlled Line - PAKO Switch Selects Voltage Regulator" Switch Turn On / Off
Measured Value Monitor
TESCOM TRUE RMS Panel Voltmeter (74x74mm) output voltage and line voltage monitorization
Working Principle
Servo Motor, Microprocessor Controlled, Full Automatic
Operating temperature
-10 °C / 50 °C
Storage Temperature
-25 °C / 60 °C
Relative humidity
< 90 %, DIN ( 40040 )
Operating Altitude
< 3000 m.
Acoustic noise
< 50 dB (1m²)
Documents
CE / ISO 9001
DIMENSIONS
HxWxD (cm)
122x180x120
170x60x117
152x180x120
185x210x120
185x210x200
185x210x260
195x240x260
please ask
Weight (kg)
1050
1100
1200
1650
2000
2100
2900
3450
3900
4300
4750
6000
please ask
