CYCLONE CL100D UPS SERIES

1/1 Uninterruptible Power Supplies

6kVA - 10kVA - 15kVA

TESCOM CYCLONE CL100D Series 1/1Ph Uninterruptible Power Supplies

IGBT RECTIFIER / DSP CONTROL

Cyclone CL100 DSP Series UPS are single phase in/single phase out, IGBT rectifier, Intelligent Power Module technology based, high input power factor, low THDI and DSP controlled.


• Transformerless UPS topology
• IPM power module
• High input power factor > 0,98
• DSP controlled system
• Full digital control system

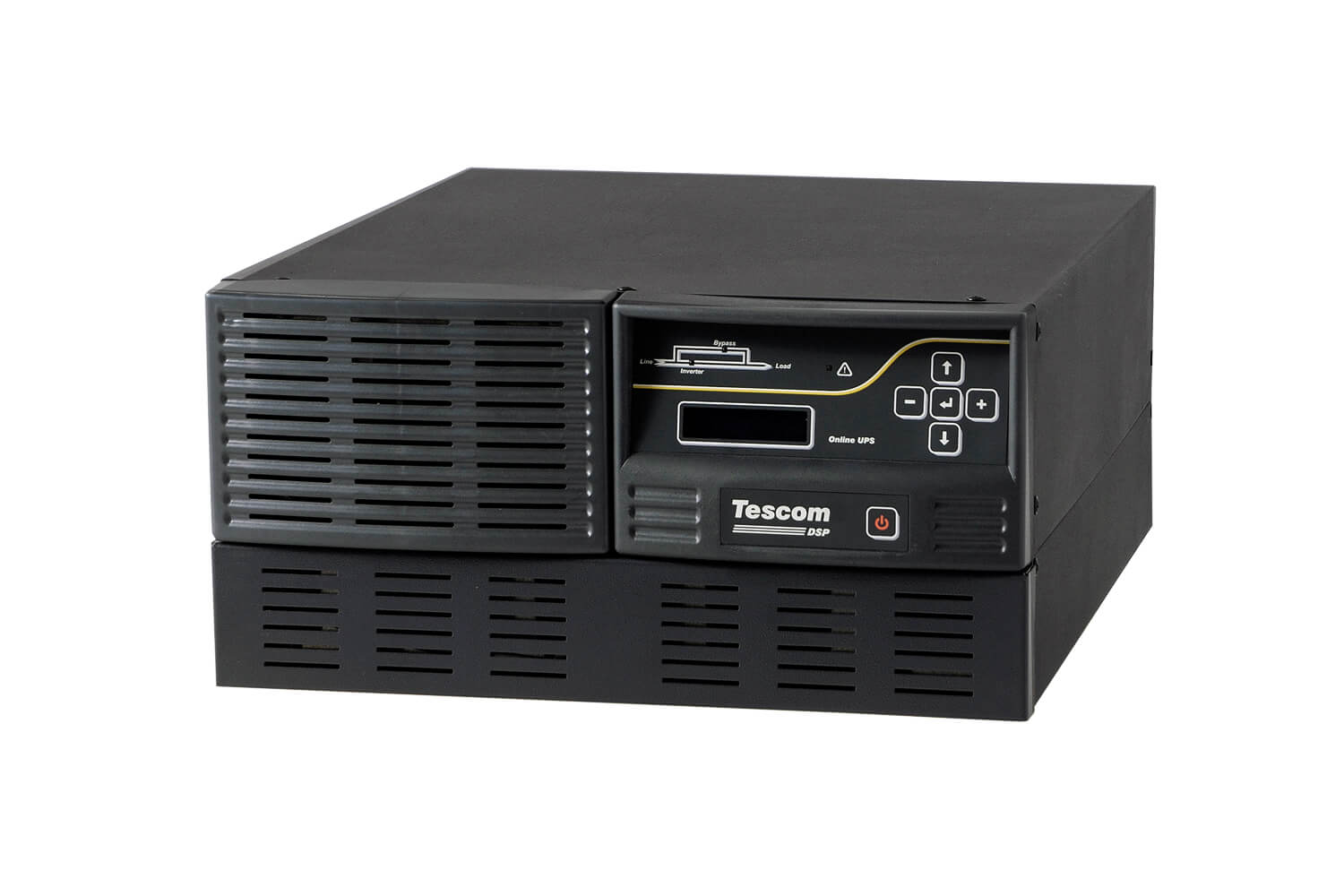

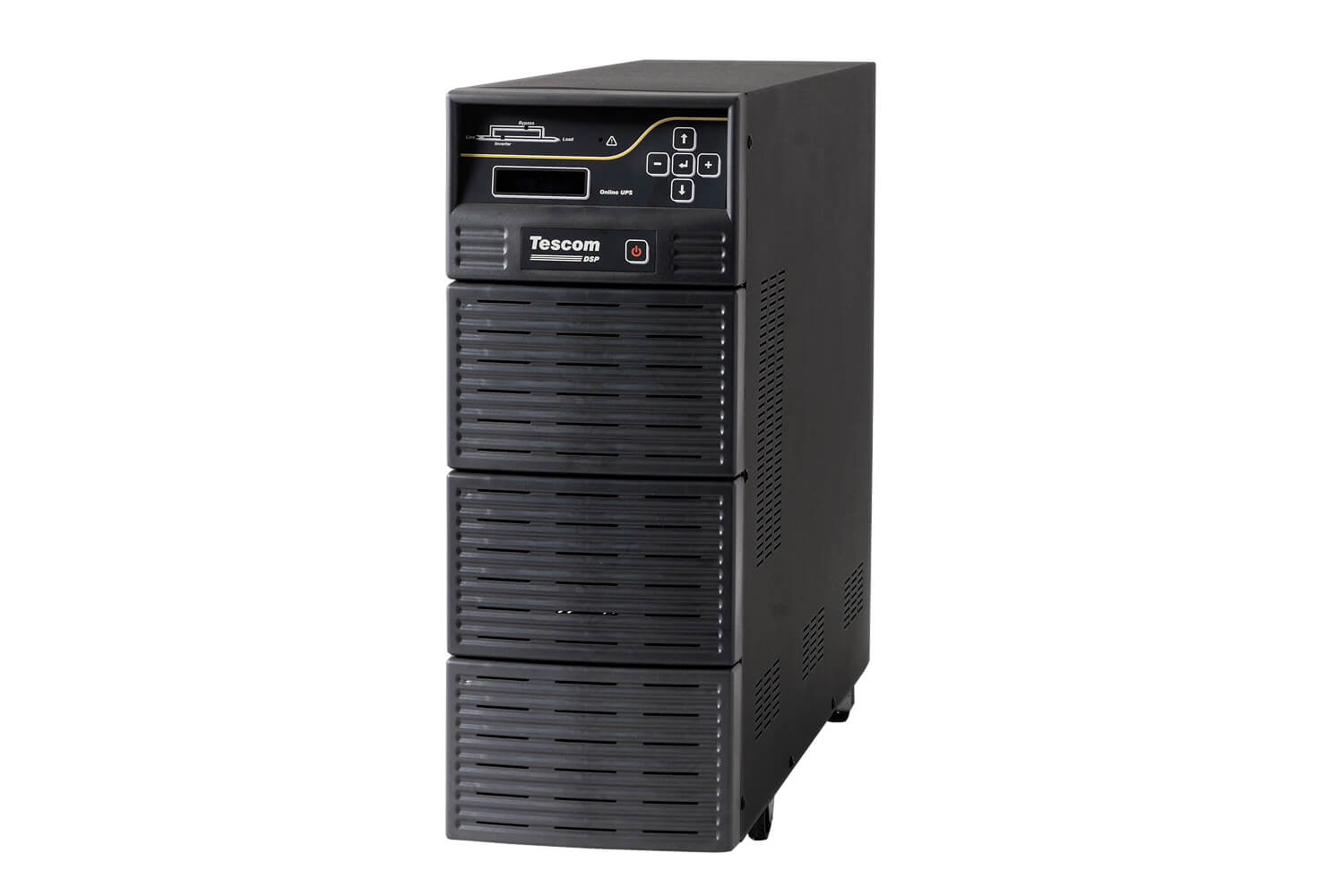

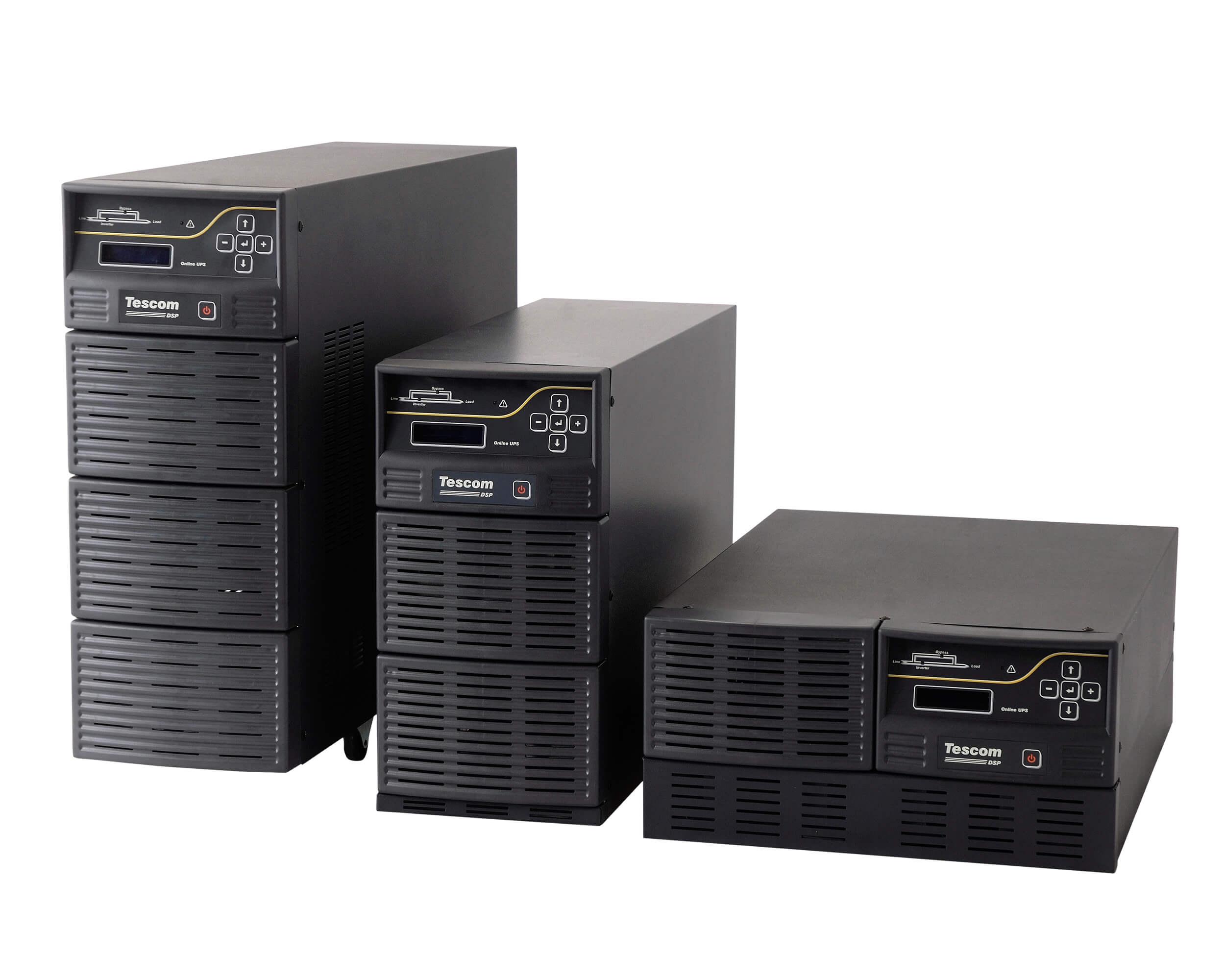

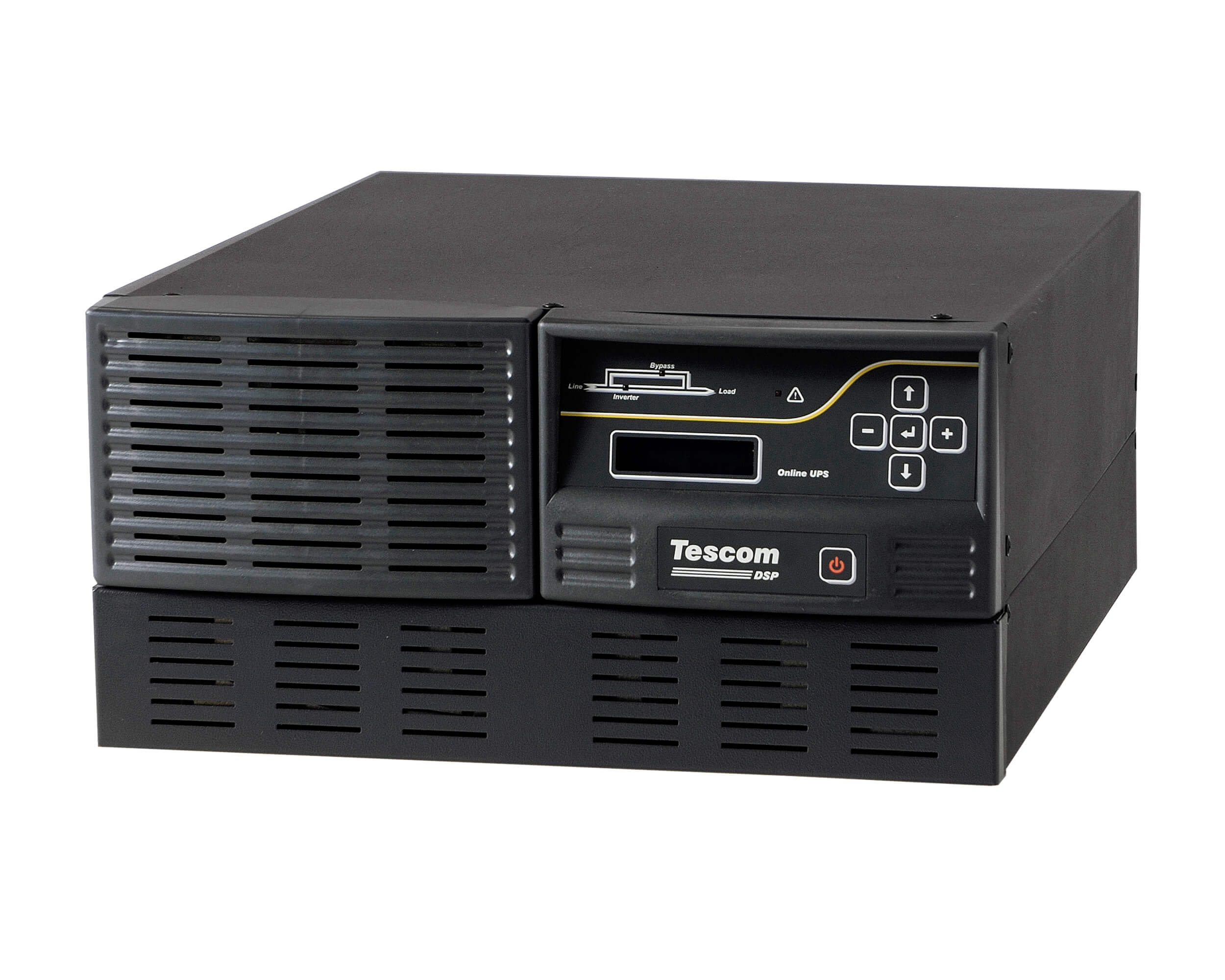

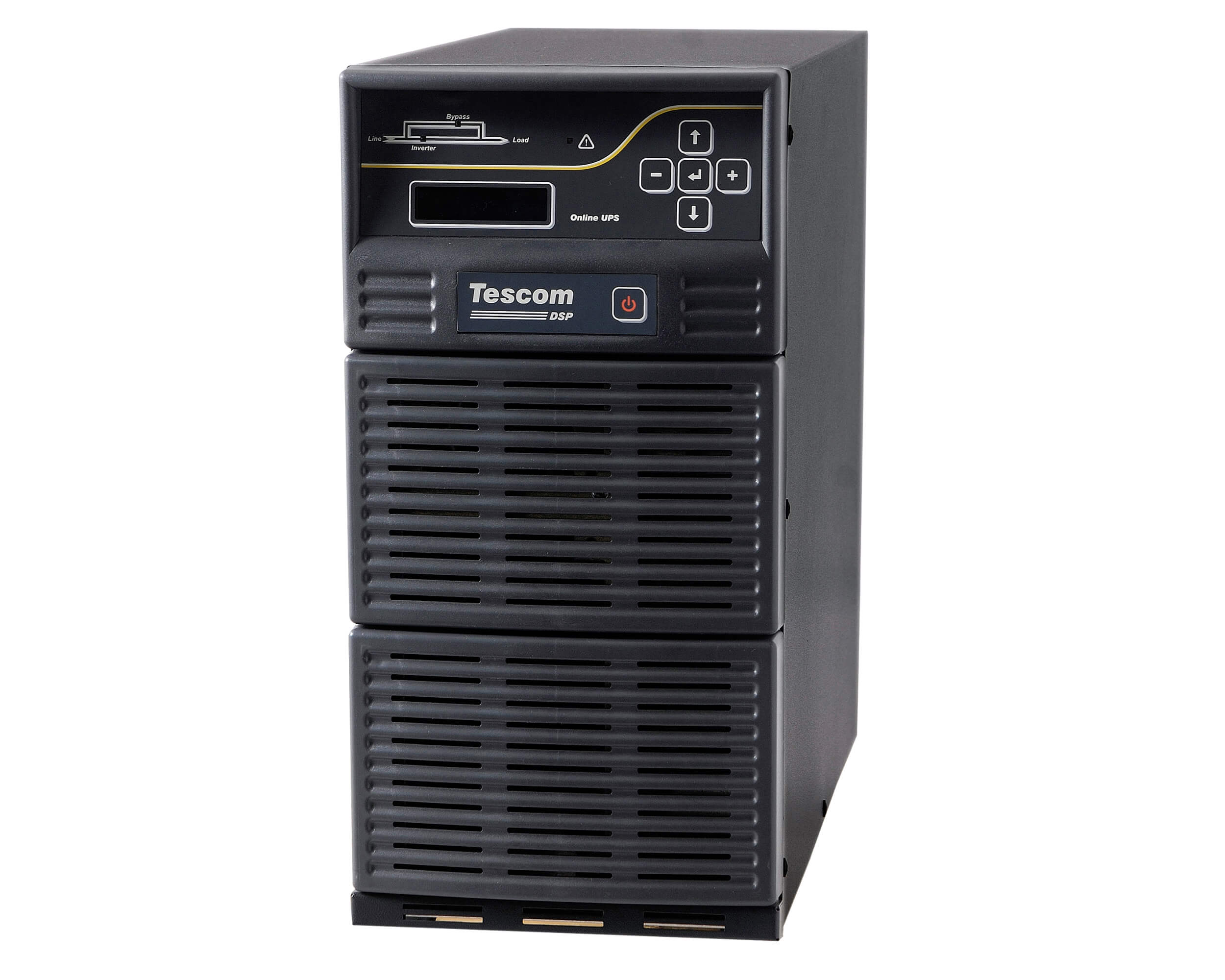

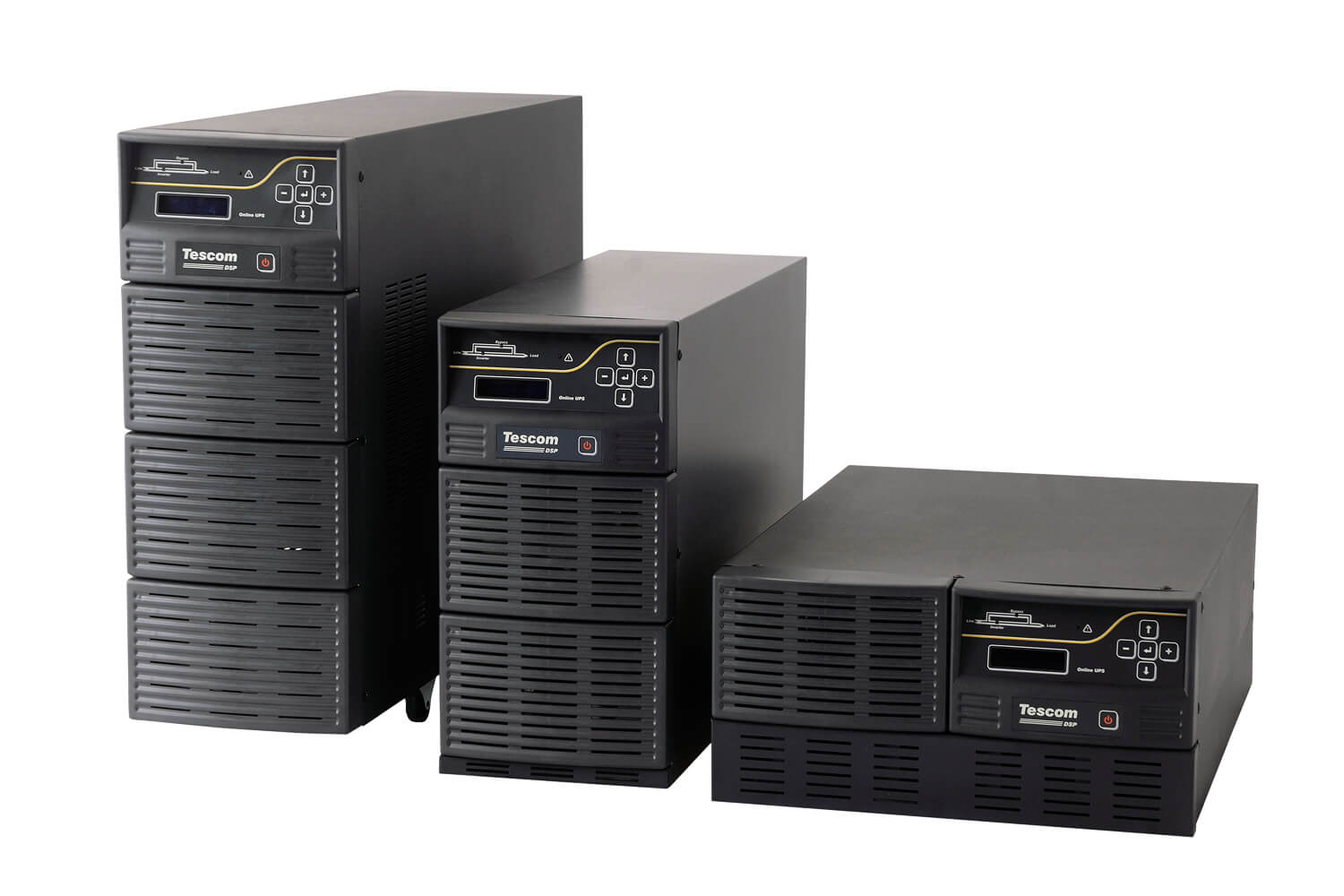

• Tower and rack type options
• PID control system
• Low input current value (THDI < 5%)
• High efficiency (up to 93%)
• Cold start function
• Static by-pass system
• Optional maintenance by-pass switch
• Optional split by-pass system
• VAT transfer (voltage adaptive transfer)
• Output overload and short circuit protection
• External REPO input
• 128 events (5000 alarms) memory
• Clock, calender and operating hourmeter
• Advanced automatic battery test
• Boost charge system
• Temperature compansated charge system
• RS232 port and dry contact relays
• Easy output voltage and frequency selection
• Optional SNMP adaptor
• 2 years warranty
• 10 years spare parts support

MODEL
CL106D
CL110D
CL115D
Power (kVA)
6
10
15
INPUT
Voltage
220/230 VAC 1P + N + G
Input voltage range
170 - 275 VAC
Frequency
50Hz / 60Hz
Frequency tolerance
40Hz - 65Hz
Power factor  (at 100% load)
> 0.98
THDI (at 100% load)
< 5%
By-pass voltage / frequency
220/230 VAC , ± 10% / 50Hz or 60Hz
By-pass frequency tolerance
Adjustable (for synchronization)
Split by-pass connection
Optional
OUTPUT
Power (kW)
4,2
7
10,5
Voltage
220/230 VAC 1Phase + N, ± 1%
Frequency
50Hz / 60Hz
Frequency tolerance
Line synchronized: ± 1% / Free running: ± 0,1%
Efficiency
Up to 92%
Crest factor
3:1
Voltage THD
< 3% (linear load)
< 5% (non-linear load)
Overload protection
100% - 125% load 10 min, 126%-150% load 1 min, >150% load: by pass
Connections
Hardwired + 2 x IEC sockets on the rear (Optional)
BATTERIES
Type
Sealed Lead Acid-Maintenance free
Number of batteries
20x12V standard (16 to 24 selectable )
Float charging voltage (adjustable)
270 VDC (20x12V for battery)
End of discharge voltage (adjustable)
200 VDC (20x12V for battery)
Battery housing
Internal
External Cabinet
Battery ambient temperature
25°C
Boost charge
Available
Battery test
Automatic or Manual, available
GENERAL
Standards
EN 62040-1,EN62040-2
Communication
RS232 standart-RS485 optional
Software
Standard T-Mon UPS Management Software (3 clients + 1 server management)
Alarm relays
3 standard (+2 programmable optional)
Remote EPO input
Available as standard
Operating temperature
0°C - 40°C
Storege temperature
-10°C to 50°C
Protection degree
IP20
Relative humidity
90% max (non-condensing)
Altitude
< 2000m above sea level
Acoustic noise
< 50 dBA
Weight without batteries (kg)
23
39
40
Dimensions (mm) HxWxD
430x215x600
590x215x780
430x600x215 (19" rack version)
Not available
OPTIONS
Different input / output voltage
Please ask
Transformer
Galvanic isolation transformer
Adaptors
SNMP, RS485, Uzaktan izleme paneli, MODBUS (RS485 veya TCP/IP)
Parallel operation
not available
